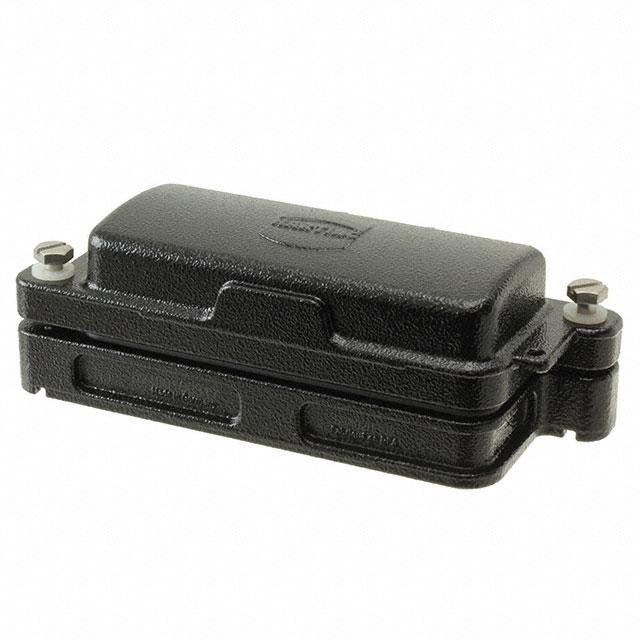

HARTING 09400160317

09400160317 HARTING

Product Information

Bottom Entry
RoHS Status:
ROHS3 Compliant
Thread Size:
Operating Temperature:
-40°C ~ 125°C
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Housing Finish:
Powder Coated
REACH Status:
REACH Unaffected
09400160317 Models
Housing Color:
Connector Type:
Base - Panel Mount
Size / Dimension:
6.496" L x 2.283" W x 1.138" H (165.00mm x 58.00mm x 28.90mm)
12 Weeks
Housing Material:
Aluminum, Die Cast
Ingress Protection:
IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Han® HPR
Lock Location:
Screw Locks on Hood
Base Product Number:
Checking for live stock

This is manufactured by HARTING. The manufacturer part number is 09400160317. Additionally, the product is designed with bottom entry Style. It is assigned with possible HTSUS value of 8538.90.8180. The product is rohs3 compliant. The product has -40°c ~ 125°c operating temperature range. Its typical moisture sensitivity level is 1 (unlimited). The product's housing has finished with a rugged powder coated. In addition, it is reach unaffected. It has an integral black housing colour. It is shipped in bulk package . base - panel mount Connector type offer robust functionality. The product's diameters include 6.496" l x 2.283" w x 1.138" h (165.00mm x 58.00mm x 28.90mm). It has a long 12 weeks standard lead time. The product also features robust aluminum, die cast housing material. It is IP rated with ip65/ip68/ip69k - dust tight, water resistant, waterproof. The splendid features of the product include cover. The product han® hpr, is a highly preferred choice for users. Lock Type & Location Information: screw locks on hood. The product is available in 16b size. Moreover, it corresponds to 09400160, a base product number of the product. The product is designated with the ear99 code number.
