HARTING 09300240420

09300240420 HARTING
09300240420
09300240420
ET11124177
ET11124177

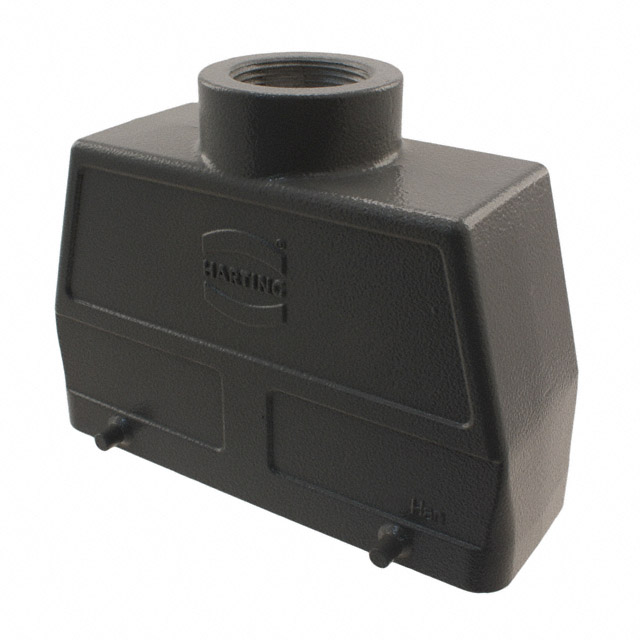

Heavy Duty Connector Housings, Hoods, Bases
Heavy Duty Connector Housings, Hoods, Bases
HARTING

Product Information

IP Rating:
IP65
Series:
Han B
Body Orientation:
Top Entry
Thread Size:
PG21
Manufacturer Size Code:
24B
For Use With:
Harting Han B Series Heavy Duty Connectors
Type:
Connector Hood
Size:
24B
Style:
Top Entry
HTSUS:
8538.90.8180
RoHS Status:
ROHS3 Compliant
Thread Size:
PG21
Operating Temperature:
-40°C ~ 125°C
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Housing Finish:
Powder Coated
title:
09300240420
REACH Status:
REACH Unaffected
edacadModel:
09300240420 Models
Housing Color:
Gray
edacadModelUrl:
/en/models/3180537
Manufacturer:
HARTING
Connector Type:
Hood
Size / Dimension:
4.724" L x 1.693" W x 3.622" H (120.00mm x 43.00mm x 92.00mm)
standardLeadTime:
10 Weeks
Housing Material:
Aluminum, Die Cast
Ingress Protection:
IP65 - Dust Tight, Water Resistant
Features:
-
Series:
Han® B
Lock Location:
Locking Clip (2) on Base Bottom
Packaging:
Bulk
Size:
24B
Base Product Number:
09300240
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by HARTING. The manufacturer part number is 09300240420. It is IP rated with ip65. The product han b, is a highly preferred choice for users. It has top entry body orientation. It has a typical thread size of pg21. Whereas, the 24b is the manufacture's size code. The product is highly suitable for harting han b series heavy duty connectors. It comes in connector hood configuration. The product is available in 24b size. Additionally, the product is designed with top entry Style. It is assigned with possible HTSUS value of 8538.90.8180. The product is rohs3 compliant. The product has -40°c ~ 125°c operating temperature range. Its typical moisture sensitivity level is 1 (unlimited). The product's housing has finished with a rugged powder coated. In addition, it is reach unaffected. It has an integral gray housing colour. The harting's product offers user-desired applications. hood Connector type offer robust functionality. The product's diameters include 4.724" l x 1.693" w x 3.622" h (120.00mm x 43.00mm x 92.00mm). It has a long 10 weeks standard lead time. The product also features robust aluminum, die cast housing material. It is IP rated with ip65 - dust tight, water resistant. The product han® b, is a highly preferred choice for users. Lock Type & Location Information: locking clip (2) on base bottom. In addition, bulk is the available packaging type of the product. Moreover, it corresponds to 09300240, a base product number of the product. The product is designated with the ear99 code number.
