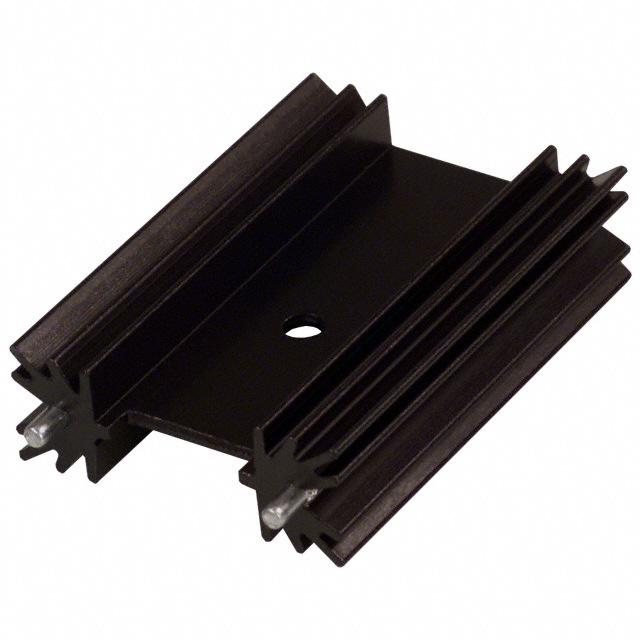

Aavid, Thermal Division of Boyd Corporation 513201B02500G

513201B02500G Aavid, Thermal Division of Boyd Corporation
513201B02500G
Aavid, Thermal Division of Boyd Corporation

Product Information

Material Finish:
Black Anodized
HTSUS:
8473.30.5100
RoHS Status:
ROHS3 Compliant
Attachment Method:
Bolt On and PC Pin
Width:
1.375" (34.93mm)
Fin Height:
0.500" (12.70mm)
Type:
Board Level, Vertical
Power Dissipation @ Temperature Rise:
2.0W @ 20°C
Material:
Aluminum
Shape:
Rectangular, Fins
Package:
Bulk
Thermal Resistance @ Natural:
8.30°C/W
Moisture Sensitivity Level (MSL):
Not Applicable
Length:
2.000" (50.80mm)
standardLeadTime:
7 Weeks
Diameter:
-
Series:
-
Package Cooled:
TO-218
Thermal Resistance @ Forced Air Flow:
3.00°C/W @ 400 LFM
Base Product Number:
513201
ECCN:
EAR99
Checking for live stock

This is manufactured by Aavid, Thermal Division of Boyd Corporation. The manufacturer part number is 513201B02500G. It is nicely plated with splendid finishing material, such as black anodized. It is assigned with possible HTSUS value of 8473.30.5100. The product is rohs3 compliant. It employs the bolt on and pc pin method for attachment. Furthermore, the product is 1.375" (34.93mm) wide. It also has a 0.500" (12.70mm) fin height. It comes in board level, vertical configuration. The given power dissipation and temperature rise include 2.0w @ 20°c. The product is made from highly stable and reliable aluminum. It is a rectangular, fins product with unique specifications. It is shipped in bulk package . The natural thermal resistance of the product includes 8.30°c/w. Its typical moisture sensitivity level is not applicable. Its accurate length is 2.000" (50.80mm). It has a long 7 weeks standard lead time. to-218 is the value of product cooled package. 3.00°c/w @ 400 lfm is the given thermal resistance at forced air flow. Moreover, it corresponds to 513201, a base product number of the product. The product is designated with the ear99 code number.
