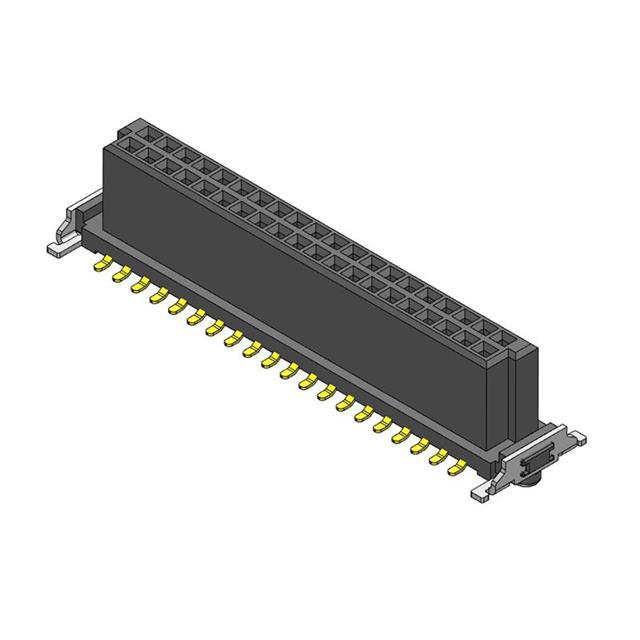

Greenconn CBEC225-2079B001C1AF
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Board
Contact Finish - Post:
Gold
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
Flash
Number of Positions:
40
Contact Length - Post:
-
Insulation Height:
0.246" (6.25mm)
Voltage Rating:
-
REACH Status:
See Individual Parts
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Package:
Tape & Reel (TR)
Row Spacing - Mating:
0.050" (1.27mm)
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
Flash
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
4 Weeks
Current Rating (Amps):
1.7A per Contact
Pitch - Mating:
0.050" (1.27mm)
Ingress Protection:
-
Features:
Board Guide, Pick and Place, Solder Retention
Mounting Type:
Surface Mount
Series:
CBEC225
Contact Type:
Female Socket
Contact Material:
Phosphor Bronze
Insulation Material:
Liquid Crystal Polymer (LCP)
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search CBEC225-2079B001C1AF on website for other similar products.
We accept all major payment methods for all products including ET23305562. Please check your shopping cart at the time of order.
You can order Greenconn brand products with CBEC225-2079B001C1AF directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Receptacles, Female Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Greenconn CBEC225-2079B001C1AF. You can also check on our website or by contacting our customer support team for further order details on Greenconn CBEC225-2079B001C1AF.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET23305562 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Greenconn" products on our website by using Enrgtech's Unique Manufacturing Part Number ET23305562.
Yes. We ship CBEC225-2079B001C1AF Internationally to many countries around the world.
This is manufactured by Greenconn. The manufacturer part number is CBEC225-2079B001C1AF. It has nice contact finishing of gold. Additionally, the product is designed with board to board Style. It has possible gold contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. Additionally, it features flash of post thickness. The product carries possible position value of 40. 0.246" (6.25mm) of insulation height. In addition, it is see individual parts. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It is shipped in tape & reel (tr) package . It carries 0.050" (1.27mm) of row spacing. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, flash is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 4 weeks standard lead time. Additionally, the product's output is 1.7a per contact. It has 0.050" (1.27mm) of pitch-mating value. The splendid features of the product include board guide, pick and place, solder retention. The product is available in surface mount configuration. The product cbec225, is a highly preferred choice for users. It has typical contact type of female socket. The product is made from sturdy phosphor bronze materials. It has a robust liquid crystal polymer (lcp) insulation material. The product is designated with the ear99 code number.
