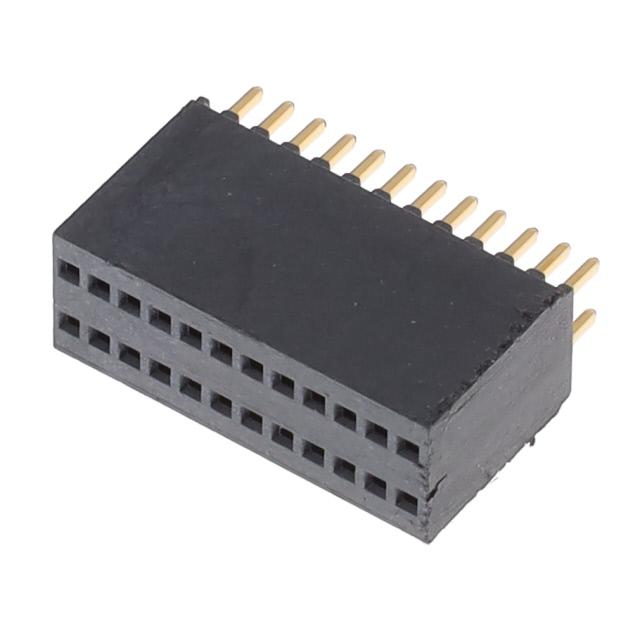

Samtec Inc. SMS-112-01-G-D

SMS-112-01-G-D Samtec Inc.
Samtec Inc.

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board
Contact Finish - Post:
Gold
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
3.00µin (0.076µm)
Number of Positions:
24
Contact Length - Post:
0.100" (2.54mm)
title:
SMS-112-01-G-D
Insulation Height:
0.335" (8.51mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Applications:
-
Number of Rows:
2
Material Flammability Rating:
-
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
-
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
10.0µin (0.25µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
5 Weeks
Current Rating (Amps):
5A per Contact
Pitch - Mating:
0.050" (1.27mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
SMS
Packaging:
Tube
Insulation Material:
Liquid Crystal Polymer (LCP)
Contact Type:
Forked
Contact Material:
Phosphor Bronze
Base Product Number:
SMS-112
ECCN:
EAR99
Checking for live stock

This is manufactured by Samtec Inc.. The manufacturer part number is SMS-112-01-G-D. It has nice contact finishing of gold. Additionally, the product is designed with board to board Style. It has possible gold contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. Additionally, it features 3.00µin (0.076µm) of post thickness. The product carries possible position value of 24. 0.100" (2.54mm) is the given possible contact length (post) values. 0.335" (8.51mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. It comes in 2 of rows. It has a typical square shape. It carries 0.100" (2.54mm) of row spacing. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 10.0µin (0.25µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 5 weeks standard lead time. Additionally, the product's output is 5a per contact. It has 0.050" (1.27mm) of pitch-mating value. The product is available in through hole configuration. The product sms, is a highly preferred choice for users. In addition, tube is the available packaging type of the product. It has a robust liquid crystal polymer (lcp) insulation material. It has typical contact type of forked. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to sms-112, a base product number of the product. The product is designated with the ear99 code number.
