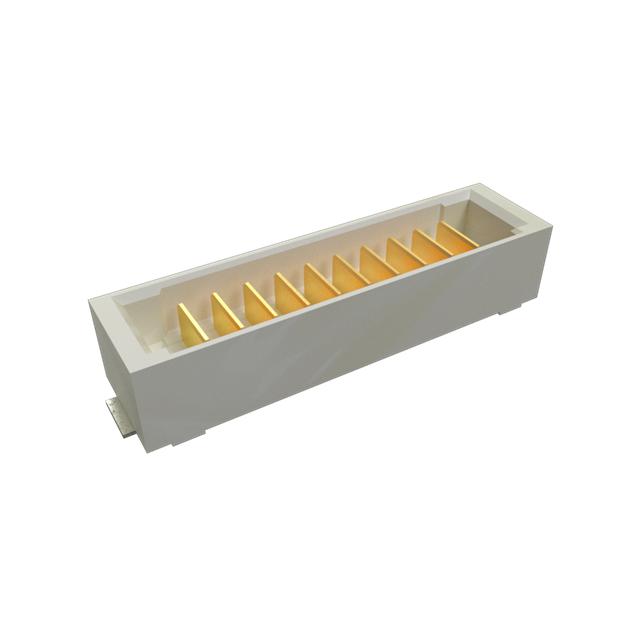

Amphenol ICC (FCI) 10159561-A00221RLF
Product Information
Contact Finish - Mating:
Gold or Gold, GXT™
Style:
Board to Board or Cable
Contact Finish - Post:
Gold
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 125°C
Contact Finish Thickness - Post:
Flash
Number of Positions:
10 (Power)
Insulation Height:
0.146" (3.70mm)
Voltage Rating:
100VDC
REACH Status:
REACH Unaffected
edacadModel:
10159561-A00221RLF Models
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/14558615
Insulation Color:
Natural
Contact Shape:
Rectangular
Mated Stacking Heights:
9mm, 10mm, 11mm, 12mm
Insulation Material:
Thermoplastic
Package:
Tape & Reel (TR)
Row Spacing - Mating:
-
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
8.00µin (0.203µm)
Fastening Type:
Detent Lock
Termination:
Solder
standardLeadTime:
10 Weeks
Current Rating (Amps):
20A per Contact
Contact Length - Post:
-
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
Board Guide, Pick and Place, Solder Retention
Mounting Type:
Surface Mount
Series:
PowerStak®
Contact Type:
Female Blade Socket
Contact Material:
Copper Alloy
Base Product Number:
10159561
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 10159561-A00221RLF on website for other similar products.
We accept all major payment methods for all products including ET21207325. Please check your shopping cart at the time of order.
You can order Amphenol ICC (FCI) brand products with 10159561-A00221RLF directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Receptacles, Female Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Amphenol ICC (FCI) 10159561-A00221RLF. You can also check on our website or by contacting our customer support team for further order details on Amphenol ICC (FCI) 10159561-A00221RLF.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET21207325 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Amphenol ICC (FCI)" products on our website by using Enrgtech's Unique Manufacturing Part Number ET21207325.
Yes. We ship 10159561-A00221RLF Internationally to many countries around the world.
This is manufactured by Amphenol ICC (FCI). The manufacturer part number is 10159561-A00221RLF. It has nice contact finishing of gold or gold, gxt™. Additionally, the product is designed with board to board or cable Style. It has possible gold contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 125°c operating temperature range. Additionally, it features flash of post thickness. The product carries possible position value of 10 (power). 0.146" (3.70mm) of insulation height. Moreover, the product has a nominal 100vdc voltage rating. In addition, it is reach unaffected. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, natural is the insulation color of the product. It has a typical rectangular shape. The mated stacking heights of a bespoke product includes 9mm, 10mm, 11mm, 12mm. It has a robust thermoplastic insulation material. It is shipped in tape & reel (tr) package . receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 8.00µin (0.203µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, detent lock is the Fastening Type of the product. The product features solder termination style. It has a long 10 weeks standard lead time. Additionally, the product's output is 20a per contact. It has 0.079" (2.00mm) of pitch-mating value. The splendid features of the product include board guide, pick and place, solder retention. The product is available in surface mount configuration. The product powerstak®, is a highly preferred choice for users. It has typical contact type of female blade socket. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 10159561, a base product number of the product. The product is designated with the ear99 code number.
