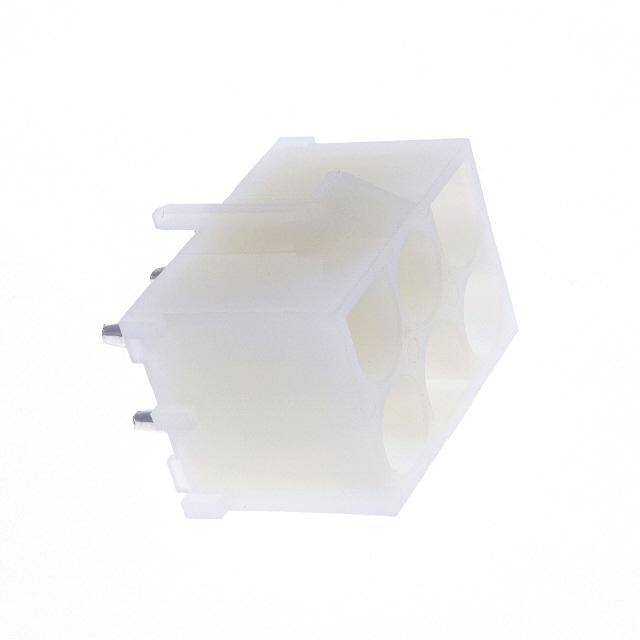

Adam Tech DME-F-06-S2-P-SQ

DME-F-06-S2-P-SQ Adam Tech
DME-F-06-S2-P-SQ
Adam Tech

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Board
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
-
Number of Positions:
6
Contact Length - Post:
0.157" (4.00mm)
Insulation Height:
0.581" (14.75mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
Applications:
-
Number of Rows:
3
Material Flammability Rating:
UL94 V-2
Insulation Color:
Natural
Contact Shape:
Circular
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA66), Nylon 6/6
Package:
Bag
Row Spacing - Mating:
0.250" (6.35mm)
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
14 Weeks
Current Rating (Amps):
9A
Pitch - Mating:
0.250" (6.35mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Through Hole
Series:
DME
Contact Type:
Female Socket
Contact Material:
Phosphor Bronze
Base Product Number:
DME-F
ECCN:
EAR99
Checking for live stock

This is manufactured by Adam Tech. The manufacturer part number is DME-F-06-S2-P-SQ. It has nice contact finishing of tin. Additionally, the product is designed with board to board Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. The product carries possible position value of 6. 0.157" (4.00mm) is the given possible contact length (post) values. 0.581" (14.75mm) of insulation height. In addition, it is reach unaffected. It comes in 3 of rows. It carries ul94 v-2 of material flammability rating. In addition, natural is the insulation color of the product. It has a typical circular shape. It has a robust polyamide (pa66), nylon 6/6 insulation material. It is shipped in bag package . It carries 0.250" (6.35mm) of row spacing. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 14 weeks standard lead time. Additionally, the product's output is 9a. It has 0.250" (6.35mm) of pitch-mating value. The splendid features of the product include board guide. The product is available in through hole configuration. The product dme, is a highly preferred choice for users. It has typical contact type of female socket. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to dme-f, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
DME-F-XX-S2-P-SQ(Datasheets)
pdf icon
ECBT2-E224053 Data Connectors, Signal, Control, Power Applications(Other Related Documents)
