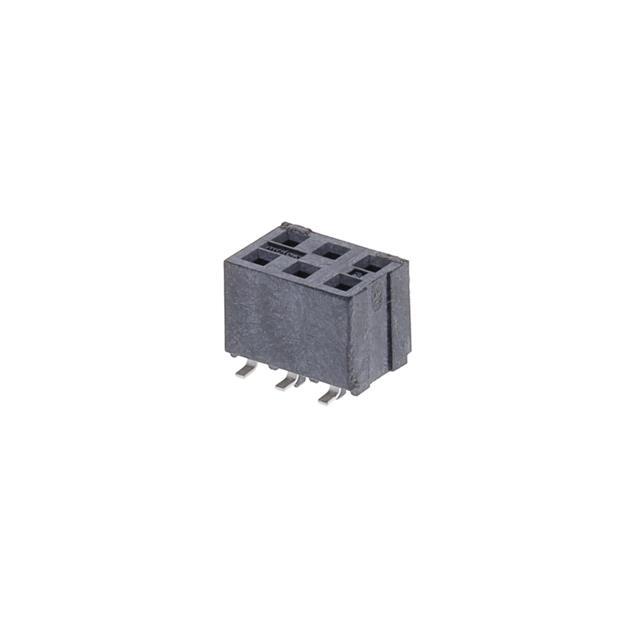

Molex 0787880613
Product Information
Contact Finish - Mating:
Tin
Style:
Board to Board
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 105°C
Contact Finish Thickness - Post:
98.4µin (2.50µm)
Number of Positions:
6
Contact Length - Post:
-
Insulation Height:
0.183" (4.65mm)
Voltage Rating:
125VAC
REACH Status:
REACH Unaffected
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
7.15mm, 8.35mm
Insulation Material:
Liquid Crystal Polymer (LCP), Glass Filled
Package:
Tube
Row Spacing - Mating:
0.079" (2.00mm)
Connector Type:
Header
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
98.4µin (2.50µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
21 Weeks
Current Rating (Amps):
1A
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
Board Guide, Pick and Place
Mounting Type:
Surface Mount
Series:
Milli-Grid 78788
Contact Type:
Female Socket
Contact Material:
Copper Alloy
Base Product Number:
078788
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 0787880613 on website for other similar products.
We accept all major payment methods for all products including ET18546754. Please check your shopping cart at the time of order.
You can order Molex brand products with 0787880613 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Receptacles, Female Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex 0787880613. You can also check on our website or by contacting our customer support team for further order details on Molex 0787880613.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18546754 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET18546754.
Yes. We ship 0787880613 Internationally to many countries around the world.
This is manufactured by Molex. The manufacturer part number is 0787880613. It has nice contact finishing of tin. Additionally, the product is designed with board to board Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 105°c operating temperature range. Additionally, it features 98.4µin (2.50µm) of post thickness. The product carries possible position value of 6. 0.183" (4.65mm) of insulation height. Moreover, the product has a nominal 125vac voltage rating. In addition, it is reach unaffected. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. The mated stacking heights of a bespoke product includes 7.15mm, 8.35mm. It has a robust liquid crystal polymer (lcp), glass filled insulation material. It is shipped in tube package . It carries 0.079" (2.00mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 98.4µin (2.50µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 21 weeks standard lead time. Additionally, the product's output is 1a. It has 0.079" (2.00mm) of pitch-mating value. The splendid features of the product include board guide, pick and place. The product is available in surface mount configuration. The product milli-grid 78788, is a highly preferred choice for users. It has typical contact type of female socket. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 078788, a base product number of the product. The product is designated with the ear99 code number.
