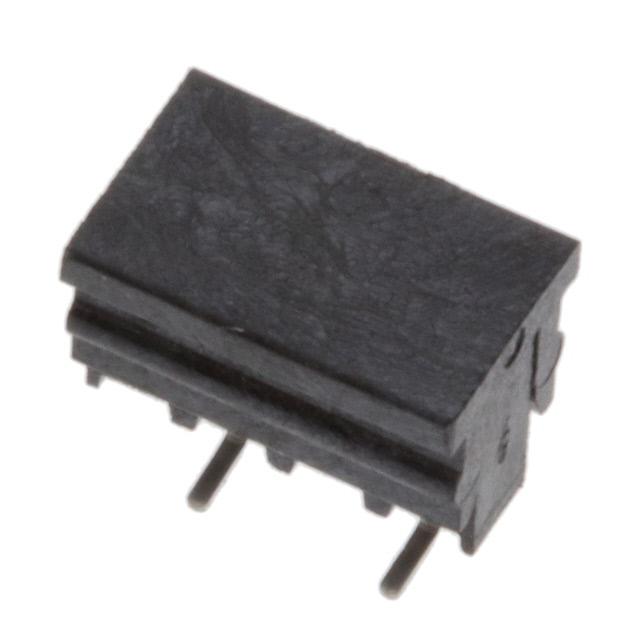

TE Connectivity AMP Connectors 2307813-4
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Board
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 125°C
Contact Finish Thickness - Post:
12.0µin (0.30µm)
Number of Positions:
4
Insulation Height:
0.177" (4.50mm)
Voltage Rating:
125VAC
REACH Status:
REACH Unaffected
edacadModel:
2307813-4 Models
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/10494750
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Liquid Crystal Polymer (LCP)
Package:
Tape & Reel (TR)
Row Spacing - Mating:
-
Connector Type:
Receptacle, Bottom or Top Entry
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
3.94µin (0.100µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
23 Weeks
Current Rating (Amps):
2A
Contact Length - Post:
-
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
Pick and Place
Mounting Type:
Surface Mount
Series:
AMPMODU
Contact Type:
Female Socket
Contact Material:
Phosphor Bronze
Base Product Number:
2307813
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 2307813-4 on website for other similar products.
We accept all major payment methods for all products including ET18512255. Please check your shopping cart at the time of order.
You can order TE Connectivity AMP Connectors brand products with 2307813-4 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Receptacles, Female Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of TE Connectivity AMP Connectors 2307813-4. You can also check on our website or by contacting our customer support team for further order details on TE Connectivity AMP Connectors 2307813-4.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18512255 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TE Connectivity AMP Connectors" products on our website by using Enrgtech's Unique Manufacturing Part Number ET18512255.
Yes. We ship 2307813-4 Internationally to many countries around the world.
This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 2307813-4. It has nice contact finishing of gold. Additionally, the product is designed with board to board Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 125°c operating temperature range. Additionally, it features 12.0µin (0.30µm) of post thickness. The product carries possible position value of 4. 0.177" (4.50mm) of insulation height. Moreover, the product has a nominal 125vac voltage rating. In addition, it is reach unaffected. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust liquid crystal polymer (lcp) insulation material. It is shipped in tape & reel (tr) package . receptacle, bottom or top entry Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 3.94µin (0.100µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 23 weeks standard lead time. Additionally, the product's output is 2a. It has 0.079" (2.00mm) of pitch-mating value. The splendid features of the product include pick and place. The product is available in surface mount configuration. The product ampmodu, is a highly preferred choice for users. It has typical contact type of female socket. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to 2307813, a base product number of the product. The product is designated with the ear99 code number.
