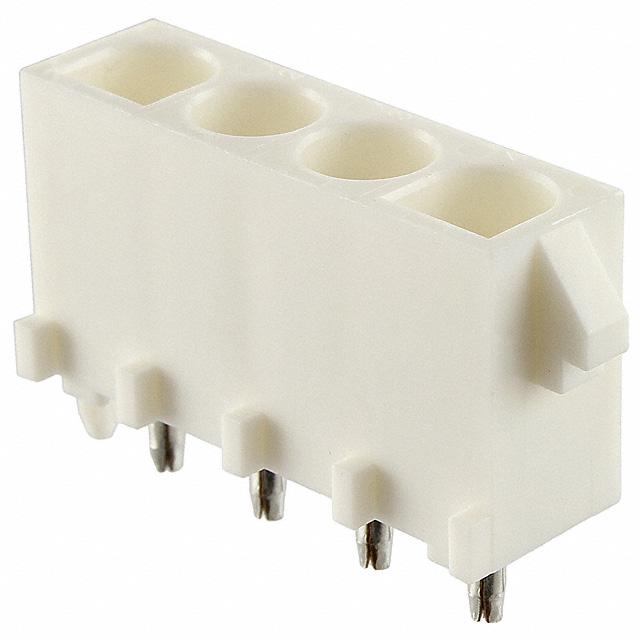

Molex 0432550019

0432550019 Molex
0432550019
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 105°C
Contact Finish Thickness - Post:
137.8µin (3.50µm)
Number of Positions:
4
Insulation Height:
0.550" (13.97mm)
Voltage Rating:
600V
REACH Status:
REACH Unaffected
edacadModel:
0432550019 Models
Applications:
Automotive, General Purpose, Industrial, Telecommunications
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/3262135
Insulation Color:
Natural
Contact Shape:
Circular
Mated Stacking Heights:
-
Insulation Material:
Polybutylene Terephthalate (PBT)
Package:
Tray
Row Spacing - Mating:
-
Connector Type:
Header
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
137.8µin (3.50µm)
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
10 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.169" (4.30mm)
Pitch - Mating:
0.250" (6.35mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Through Hole
Series:
MLX 43255
Contact Type:
Female Socket
Contact Material:
Phosphor Bronze
Base Product Number:
043255
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0432550019. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 105°c operating temperature range. Additionally, it features 137.8µin (3.50µm) of post thickness. The product carries possible position value of 4. 0.550" (13.97mm) of insulation height. Moreover, the product has a nominal 600v voltage rating. In addition, it is reach unaffected. The product is widely employed in automotive, general purpose, industrial, telecommunications. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, natural is the insulation color of the product. It has a typical circular shape. It has a robust polybutylene terephthalate (pbt) insulation material. It is shipped in tray package . header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 137.8µin (3.50µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 10 weeks standard lead time. 0.169" (4.30mm) is the given possible contact length (post) values. It has 0.250" (6.35mm) of pitch-mating value. The splendid features of the product include board guide. The product is available in through hole configuration. The product mlx 43255, is a highly preferred choice for users. It has typical contact type of female socket. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to 043255, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
432550019 RoHS Cert of Compliance(Environmental Information)
pdf icon
0432550019(Datasheets)
pdf icon
432550019(Datasheets)
pdf icon
43255-0019.pdf(3D Drawings)
