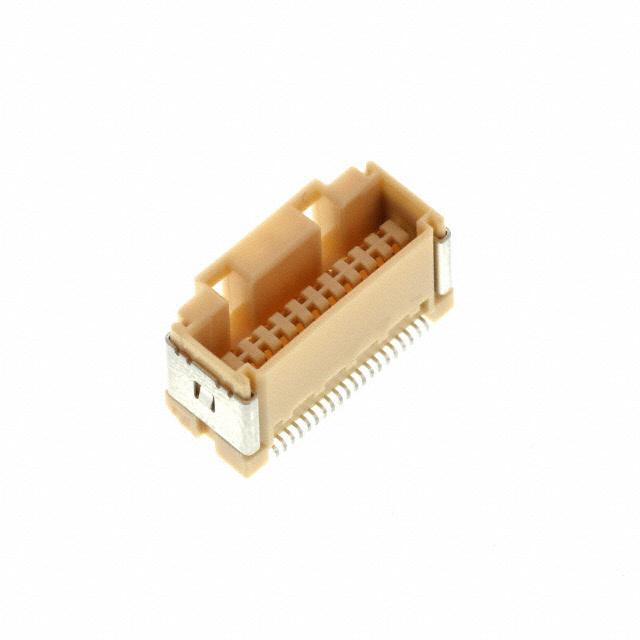

Molex 5020462070

5020462070 Molex
5020462070
Molex

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-25°C ~ 85°C
Contact Finish Thickness - Post:
39.4µin (1.00µm)
Number of Positions:
20
title:
5020462070
Insulation Height:
0.295" (7.50mm)
Insulation Color:
Natural
REACH Status:
REACH Unaffected
edacadModel:
5020462070 Models
Applications:
General Purpose
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2567139
Contact Shape:
-
Mated Stacking Heights:
-
Voltage Rating:
50V
Row Spacing - Mating:
-
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
3.90µin (0.099µm)
Fastening Type:
Detent Lock
Termination:
Solder
standardLeadTime:
47 Weeks
Current Rating (Amps):
1A
Contact Length - Post:
-
Pitch - Mating:
0.049" (1.25mm)
Ingress Protection:
-
Features:
Pick and Place, Solder Retention
Mounting Type:
Surface Mount, Right Angle
Series:
Duo-Clasp 502046
Packaging:
Tape & Reel (TR)
Insulation Material:
Polyamide (PA), Nylon
Contact Type:
Forked
Contact Material:
Copper Alloy
Base Product Number:
502046
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 5020462070. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -25°c ~ 85°c operating temperature range. Additionally, it features 39.4µin (1.00µm) of post thickness. The product carries possible position value of 20. 0.295" (7.50mm) of insulation height. In addition, natural is the insulation color of the product. In addition, it is reach unaffected. The product is widely employed in general purpose. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. Moreover, the product has a nominal 50v voltage rating. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 3.90µin (0.099µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, detent lock is the Fastening Type of the product. The product features solder termination style. It has a long 47 weeks standard lead time. Additionally, the product's output is 1a. It has 0.049" (1.25mm) of pitch-mating value. The splendid features of the product include pick and place, solder retention. The product is available in surface mount, right angle configuration. The product duo-clasp 502046, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. It has a robust polyamide (pa), nylon insulation material. It has typical contact type of forked. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 502046, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
5020462070 RoHS Cert of Compliance(Environmental Information)
pdf icon
502046y070 Location 16/Apr/2024(PCN Assembly/Origin)
pdf icon
5020462070(Datasheets)
pdf icon
502046-2070.pdf(3D Drawings)
