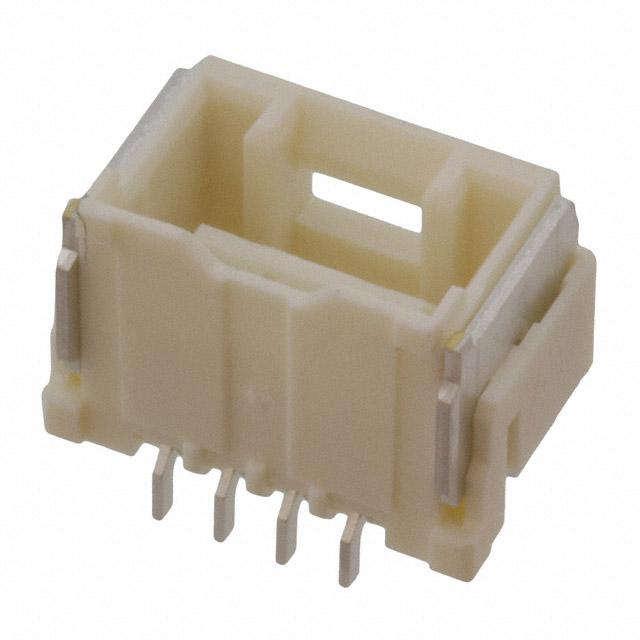

Molex 502585 Series Number 1.5mm Pitch 4 Way 1 Row Right Angle PCB Socket, Surface Mount, Solder Termination
Product Information
Number of Contacts:
4
Current Rating:
2A
Mounting Type:
Surface Mount
Voltage Rating:
100 V
Body Orientation:
Right Angle
Termination Method:
Solder
Number of Rows:
1
Contact Plating:
Tin
Pitch:
1.5mm
Contact Material:
Copper Alloy
Type:
Receptacle
Series Number:
502585
Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
39.4µin (1.00µm)
Number of Positions:
4
Insulation Height:
0.250" (6.35mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
5025850470 Models
Applications:
Automotive, General Purpose, Industrial, Lighting, Medical
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2819044
Insulation Color:
Beige
Contact Shape:
-
Mated Stacking Heights:
-
Insulation Material:
Resin
Package:
Tape & Reel (TR)
Row Spacing - Mating:
-
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
39.4µin (1.00µm)
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
12 Weeks
Current Rating (Amps):
-
Contact Length - Post:
-
Pitch - Mating:
0.059" (1.50mm)
Ingress Protection:
-
Features:
Pick and Place, Solder Retention
Mounting Type:
Surface Mount, Right Angle
Series:
CLIK-Mate 502585
Contact Type:
Forked
Contact Material:
Copper Alloy
Base Product Number:
502585
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 5025850470 on website for other similar products.
We accept all major payment methods for all products including ET16778265. Please check your shopping cart at the time of order.
You can order Molex brand products with 5025850470 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Receptacles, Female Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex 502585 Series Number 1.5mm Pitch 4 Way 1 Row Right Angle PCB Socket, Surface Mount, Solder Termination. You can also check on our website or by contacting our customer support team for further order details on Molex 502585 Series Number 1.5mm Pitch 4 Way 1 Row Right Angle PCB Socket, Surface Mount, Solder Termination.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16778265 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16778265.
Yes. We ship 5025850470 Internationally to many countries around the world.
This is 502585 Series Number 1.5mm Pitch 4 Way 1 Row Right Angle PCB Socket Surface Mount Solder Termination manufactured by Molex. The manufacturer part number is 5025850470. The product contains 4 contacts. The product has a current rating of 2a. The product is available in surface mount configuration. Moreover, the product has a nominal 100 v voltage rating. It has right angle body orientation. It allows solder termination method. It comes in 1 of rows. The high-quality tin is used as contact plating material. Moreover, the product is 1.5mm. The product is made from sturdy copper alloy materials. It comes in receptacle configuration. It carries [Serial Number] serial number. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. Additionally, it features 39.4µin (1.00µm) of post thickness. The product carries possible position value of 4. 0.250" (6.35mm) of insulation height. In addition, it is reach unaffected. The product is widely employed in automotive, general purpose, industrial, lighting, medical. It carries ul94 v-0 of material flammability rating. In addition, beige is the insulation color of the product. It has a robust resin insulation material. It is shipped in tape & reel (tr) package . receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 39.4µin (1.00µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 12 weeks standard lead time. It has 0.059" (1.50mm) of pitch-mating value. The splendid features of the product include pick and place, solder retention. The product is available in surface mount, right angle configuration. The product clik-mate 502585, is a highly preferred choice for users. It has typical contact type of forked. Moreover, it corresponds to 502585, a base product number of the product. The product is designated with the ear99 code number.
