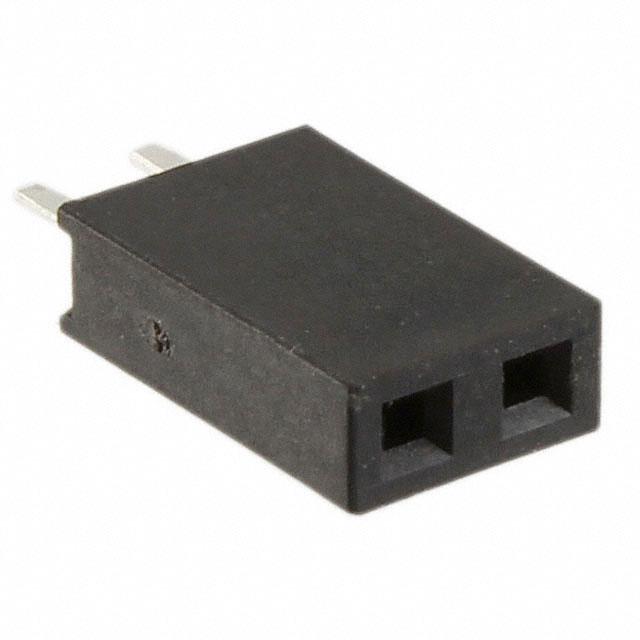

Harwin Inc. M20-7820242

M20-7820242 Harwin Inc.
M20-7820242
Harwin Inc.

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
-
Number of Positions:
2
Contact Length - Post:
0.118" (3.00mm)
Insulation Height:
0.335" (8.51mm)
Voltage Rating:
1000V
REACH Status:
REACH Unaffected
Applications:
General Purpose, Industrial, Telecommunications
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
11.04mm, 12.63mm
Insulation Material:
Polyamide (PA6T), Nylon 6T
Package:
Tube
Row Spacing - Mating:
-
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
Flash
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
17 Weeks
Current Rating (Amps):
3A
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
M20
Contact Type:
Female Socket
Contact Material:
Phosphor Bronze
Base Product Number:
M20-782
ECCN:
EAR99
Checking for live stock

This is manufactured by Harwin Inc.. The manufacturer part number is M20-7820242. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. The product carries possible position value of 2. 0.118" (3.00mm) is the given possible contact length (post) values. 0.335" (8.51mm) of insulation height. Moreover, the product has a nominal 1000v voltage rating. In addition, it is reach unaffected. The product is widely employed in general purpose, industrial, telecommunications. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. The mated stacking heights of a bespoke product includes 11.04mm, 12.63mm. It has a robust polyamide (pa6t), nylon 6t insulation material. It is shipped in tube package . receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, flash is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 17 weeks standard lead time. Additionally, the product's output is 3a. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole configuration. The product m20, is a highly preferred choice for users. It has typical contact type of female socket. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to m20-782, a base product number of the product. The product is designated with the ear99 code number.
