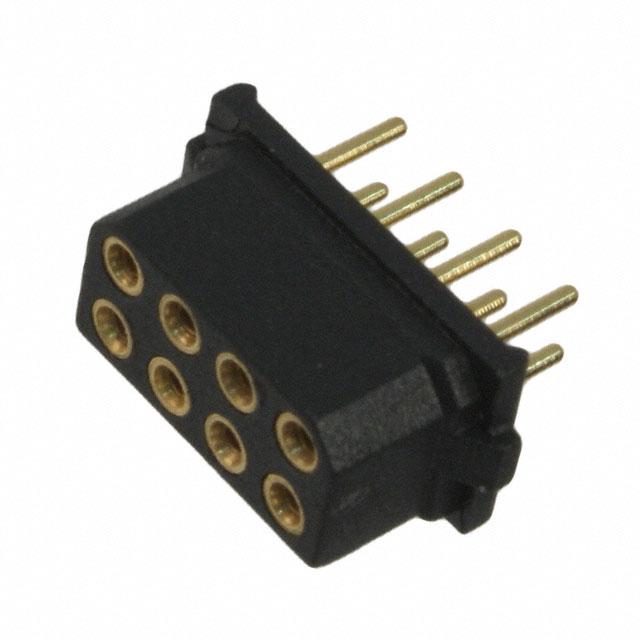

Harwin Inc. M80-8870805

M80-8870805 Harwin Inc.
Harwin Inc.

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
Contact Finish - Post:
Gold
HTSUS:
8536.69.4040
RoHS Status:
RoHS non-compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
10.0µin (0.25µm)
Number of Positions:
8
Contact Length - Post:
0.118" (3.00mm)
Insulation Height:
0.202" (5.14mm)
Voltage Rating:
800V
REACH Status:
REACH Unaffected
Applications:
Automotive, General Purpose, Military
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Insulation Color:
Black
Contact Shape:
Circular
Mated Stacking Heights:
7.23mm, 7.85mm
Insulation Material:
Polyester, Glass Filled
Package:
Tube
Row Spacing - Mating:
0.079" (2.00mm)
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
12.0µin (0.30µm)
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
22 Weeks
Current Rating (Amps):
-
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
Datamate L-Tek
Contact Type:
Female Socket
Contact Material:
Beryllium Copper
Base Product Number:
M80-887
ECCN:
EAR99
Checking for live stock

This is manufactured by Harwin Inc.. The manufacturer part number is M80-8870805. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It has possible gold contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs non-compliant. The product has -55°c ~ 125°c operating temperature range. Additionally, it features 10.0µin (0.25µm) of post thickness. The product carries possible position value of 8. 0.118" (3.00mm) is the given possible contact length (post) values. 0.202" (5.14mm) of insulation height. Moreover, the product has a nominal 800v voltage rating. In addition, it is reach unaffected. The product is widely employed in automotive, general purpose, military. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical circular shape. The mated stacking heights of a bespoke product includes 7.23mm, 7.85mm. It has a robust polyester, glass filled insulation material. It is shipped in tube package . It carries 0.079" (2.00mm) of row spacing. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 12.0µin (0.30µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 22 weeks standard lead time. It has 0.079" (2.00mm) of pitch-mating value. The product is available in through hole configuration. The product datamate l-tek, is a highly preferred choice for users. It has typical contact type of female socket. The product is made from sturdy beryllium copper materials. Moreover, it corresponds to m80-887, a base product number of the product. The product is designated with the ear99 code number.
