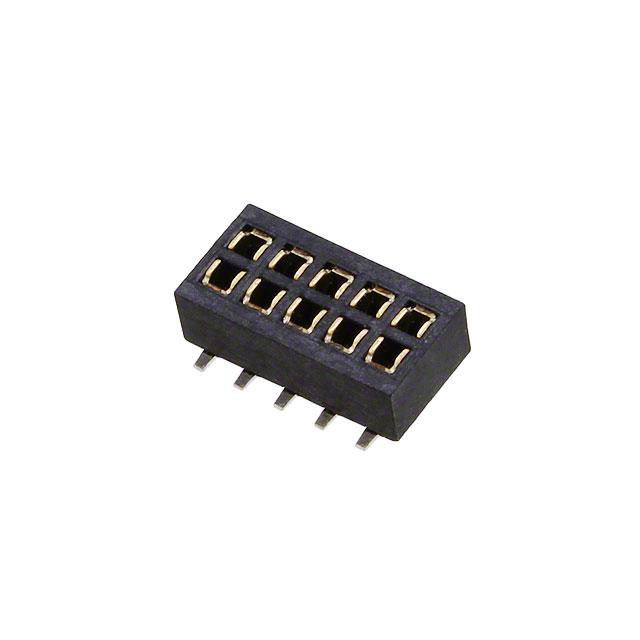

Harwin Inc. M50-3150542
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
10
Insulation Height:
0.087" (2.20mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
M50-3150542 Models
Applications:
General Purpose, Medical, Telecommunications
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2264352
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
3.2mm, 3.9mm, 4.6mm, 5.3mm, 7.2mm, 8.6mm
Insulation Material:
Polyamide (PA6T), Nylon 6T
Package:
Tube
Row Spacing - Mating:
0.050" (1.27mm)
Connector Type:
Receptacle, Bottom or Top Entry
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
Flash
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
17 Weeks
Current Rating (Amps):
1A
Contact Length - Post:
-
Pitch - Mating:
0.050" (1.27mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Surface Mount
Series:
Archer M50
Contact Type:
Female Socket
Contact Material:
Phosphor Bronze
Base Product Number:
M50-315
ECCN:
EAR99
local
17 - In Stock
Ships in 2-3 business days
Quantity
Unit Price (ex VAT)
Price
1
£ 3.12
£ 3.12
Mfr Part No:
M50-3150542
Seller:
Harwin Inc.
(local)
Origin:
Warranty:
Manufacturer
Data Code:
ET11672404
Order Today!
From: United Kingdom
Est Ship Date:
30 Apr, 2024
Est Fastest Delivery:
01 May, 2024
FAQs
Yes. You can also search M50-3150542 on website for other similar products.
We accept all major payment methods for all products including ET11672404. Please check your shopping cart at the time of order.
You can order Harwin Inc. brand products with M50-3150542 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Receptacles, Female Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Harwin Inc. M50-3150542. You can also check on our website or by contacting our customer support team for further order details on Harwin Inc. M50-3150542.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11672404 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Harwin Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET11672404.
Yes. We ship M50-3150542 Internationally to many countries around the world.
The Harwin Inc. M50-3150542 is a versatile 10-position receptacle connector designed for versatility, offering both bottom and top entry capabilities to accommodate diverse assembly requirements. Its 0.050" (1.27mm) pitch makes it ideal for applications where space is at a premium, ensuring high-density connections without compromising performance. The surface mount technology (SMT) design facilitates streamlined manufacturing processes, while the gold-plated contacts guarantee exceptional conductivity and corrosion resistance.
Potential Benefits and Features of the Connector
Surface Mount Technology
Designed for SMT, this connector facilitates efficient assembly processes, reducing manufacturing time and cost. It's compatible with standard SMT equipment, making it a seamless addition to production lines.
Typical Applications of the Harwin Inc. M50-3150542. 10-Position Connector, Top or Bottom Entry
The Harwin Inc. M50-3150542 connector finds its place in a myriad of applications across various industries, such as:
