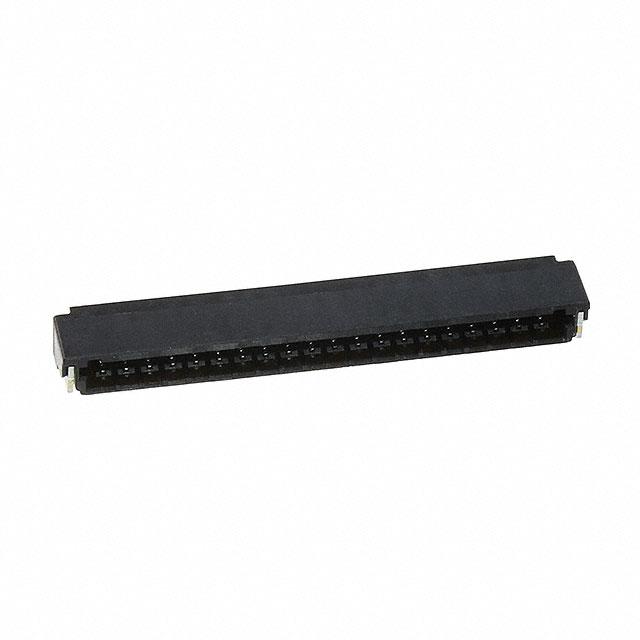

Hirose Electric Co Ltd DF52-20S-0.8H(21)

DF52-20S-0-8H-21- Hirose Electric Co Ltd DF52-20S-0.8H(21)
DF52-20S-0.8H(21)
Hirose Electric Co Ltd

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-40°C ~ 85°C
Contact Finish Thickness - Post:
-
Number of Positions:
20
Insulation Height:
0.069" (1.75mm)
Voltage Rating:
100V
edacadModel:
DF52-20S-0.8H(21) Models
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/5721363
Insulation Color:
Black
Contact Shape:
-
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA), Nylon, Halogen Free
Package:
Tape & Reel (TR)
Row Spacing - Mating:
-
Connector Type:
Socket
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Detent Lock
Termination:
Solder
Current Rating (Amps):
1.5A
Contact Length - Post:
-
Pitch - Mating:
0.031" (0.80mm)
Ingress Protection:
-
Features:
Glow Wire Compliant, Solder Retention
Mounting Type:
Surface Mount, Right Angle
Series:
DF52
Contact Type:
Non-Gendered
Contact Material:
Copper Alloy
Base Product Number:
DF52
ECCN:
EAR99
Checking for live stock

This is manufactured by Hirose Electric Co Ltd. The manufacturer part number is DF52-20S-0.8H(21). It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -40°c ~ 85°c operating temperature range. The product carries possible position value of 20. 0.069" (1.75mm) of insulation height. Moreover, the product has a nominal 100v voltage rating. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a robust polyamide (pa), nylon, halogen free insulation material. It is shipped in tape & reel (tr) package . socket Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, detent lock is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 1.5a. It has 0.031" (0.80mm) of pitch-mating value. The splendid features of the product include glow wire compliant, solder retention. The product is available in surface mount, right angle configuration. The product df52, is a highly preferred choice for users. It has typical contact type of non-gendered. The product is made from sturdy copper alloy materials. Moreover, it corresponds to df52, a base product number of the product. The product is designated with the ear99 code number.
