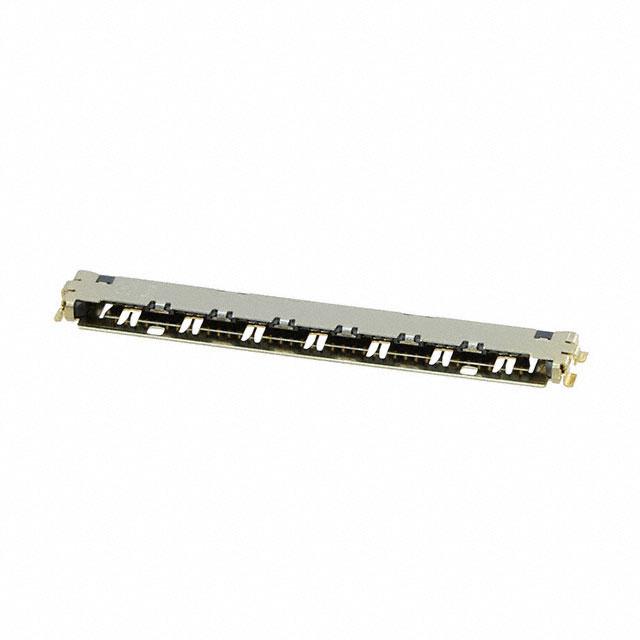

Hirose Electric Co Ltd DF81-40S-0.4H(52)
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
Contact Finish - Post:
Gold
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-35°C ~ 85°C
Contact Finish Thickness - Post:
2.00µin (0.051µm)
Number of Positions:
40
Insulation Height:
0.035" (0.90mm)
Voltage Rating:
100V
edacadModel:
DF81-40S-0.4H(52) Models
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4863991
Insulation Color:
Black
Contact Shape:
-
Mated Stacking Heights:
-
Insulation Material:
Liquid Crystal Polymer (LCP), Halogen Free
Package:
Tape & Reel (TR)
Row Spacing - Mating:
-
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
3.90µin (0.099µm)
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
16 Weeks
Current Rating (Amps):
0.3A
Contact Length - Post:
-
Pitch - Mating:
0.016" (0.40mm)
Ingress Protection:
-
Features:
Grounding Tab, Shielded
Mounting Type:
Surface Mount, Right Angle
Series:
DF81
Contact Type:
Center Strip Contact
Contact Material:
Phosphor Bronze
Base Product Number:
DF81
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search DF81-40S-0.4H(52) on website for other similar products.
We accept all major payment methods for all products including ET11136155. Please check your shopping cart at the time of order.
You can order Hirose Electric Co Ltd brand products with DF81-40S-0.4H(52) directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Receptacles, Female Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Hirose Electric Co Ltd DF81-40S-0.4H(52). You can also check on our website or by contacting our customer support team for further order details on Hirose Electric Co Ltd DF81-40S-0.4H(52).
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11136155 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Hirose Electric Co Ltd" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11136155.
Yes. We ship DF81-40S-0.4H(52) Internationally to many countries around the world.
This is manufactured by Hirose Electric Co Ltd. The manufacturer part number is DF81-40S-0.4H(52). It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It has possible gold contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -35°c ~ 85°c operating temperature range. Additionally, it features 2.00µin (0.051µm) of post thickness. The product carries possible position value of 40. 0.035" (0.90mm) of insulation height. Moreover, the product has a nominal 100v voltage rating. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a robust liquid crystal polymer (lcp), halogen free insulation material. It is shipped in tape & reel (tr) package . receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 3.90µin (0.099µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 16 weeks standard lead time. Additionally, the product's output is 0.3a. It has 0.016" (0.40mm) of pitch-mating value. The splendid features of the product include grounding tab, shielded. The product is available in surface mount, right angle configuration. The product df81, is a highly preferred choice for users. It has typical contact type of center strip contact. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to df81, a base product number of the product. The product is designated with the ear99 code number.
