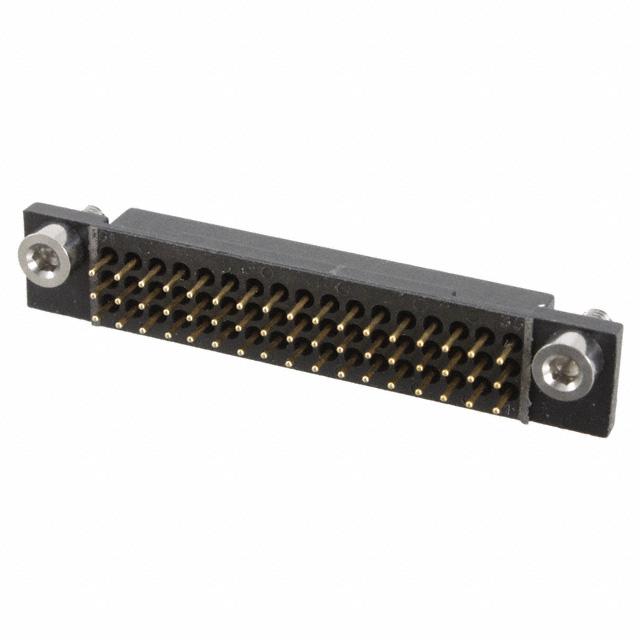

Harwin Inc. M80-7045105
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
Contact Finish - Post:
Gold
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
12.0µin (0.30µm)
Number of Positions:
51
Contact Length - Post:
0.118" (3.00mm)
Insulation Height:
0.247" (6.28mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
Applications:
-
Number of Rows:
3
Material Flammability Rating:
UL94 V-0
Insulation Color:
Black
Contact Shape:
Circular
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA46), Nylon 4/6, Glass Filled
Package:
Tray
Row Spacing - Mating:
0.079" (2.00mm)
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
12.0µin (0.30µm)
Fastening Type:
Screw Lock
Termination:
Solder
standardLeadTime:
16 Weeks
Current Rating (Amps):
-
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
Jackscrews, Mating Flange, Mounting Flange
Mounting Type:
Through Hole
Series:
Datamate J-Tek
Contact Type:
Female Socket
Contact Material:
Beryllium Copper
Base Product Number:
M80-704
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search M80-7045105 on website for other similar products.
We accept all major payment methods for all products including ET10706859. Please check your shopping cart at the time of order.
You can order Harwin Inc. brand products with M80-7045105 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Receptacles, Female Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Harwin Inc. M80-7045105. You can also check on our website or by contacting our customer support team for further order details on Harwin Inc. M80-7045105.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10706859 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Harwin Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET10706859.
Yes. We ship M80-7045105 Internationally to many countries around the world.
This is manufactured by Harwin Inc.. The manufacturer part number is M80-7045105. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It has possible gold contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. Additionally, it features 12.0µin (0.30µm) of post thickness. The product carries possible position value of 51. 0.118" (3.00mm) is the given possible contact length (post) values. 0.247" (6.28mm) of insulation height. In addition, it is reach unaffected. It comes in 3 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical circular shape. It has a robust polyamide (pa46), nylon 4/6, glass filled insulation material. It is shipped in tray package . It carries 0.079" (2.00mm) of row spacing. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 12.0µin (0.30µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, screw lock is the Fastening Type of the product. The product features solder termination style. It has a long 16 weeks standard lead time. It has 0.079" (2.00mm) of pitch-mating value. The splendid features of the product include jackscrews, mating flange, mounting flange. The product is available in through hole configuration. The product datamate j-tek, is a highly preferred choice for users. It has typical contact type of female socket. The product is made from sturdy beryllium copper materials. Moreover, it corresponds to m80-704, a base product number of the product. The product is designated with the ear99 code number.
