Connector System:
COMBICON FMC 1
Tail Pin Length:
1.4mm
Number of Contacts:
6
Termination Type:
Solder
Housing Material:
Liquid Crystal Polymer
Shrouded/Unshrouded:
Shrouded
Series:
MCDN
Contact Material:
Copper Alloy
Contact Gender:
Male
Row Pitch:
3.81mm
Current:
8A
Number of Rows:
2
Standards/Approvals:
cULus Recognised (E60425-20110128), DIN EN 61760-1, IEC 60068-2-58, IEC 60068-2-70:1995-12, IEC 60068-2-82/JEDEC JESD 201, IEC 60112, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60512-13-5:2006-02, IEC 60512-15-1:2008-05, IEC 60512-3-1:2002-02, IEC 60512-5-1:2002-02, IEC 60664-1:2007-04, IPC/JEDEC J-STD-020-C, ISO 6988:1985-02, UL 94 V0, VDE (40011723)
Voltage:
160 V
Contact Plating:
Tin over Nickel
Pitch:
3.81mm
Mating Pin Length:
1.4mm

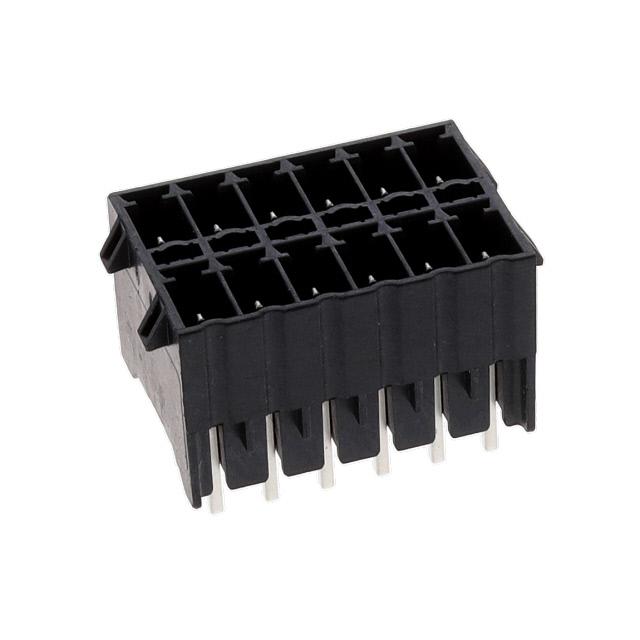

Product Type:
PCB Header
Maximum Operating Temperature:
100°C
Minimum Operating Temperature:
-40°C
Mount Type:
Through Hole
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Termination Style:
Solder
Housing Material:
Liquid Crystal Polymer (LCP)
Operating Temperature:
-
Screw Size:
-
Wire Strip Length:
-
Type:
Header, Male Pins, Shrouded (4 Side)
Number of Positions:
6
Contact Tail Length:
0.055" (1.40mm)
Wire Gauge or Range - mm²:
-
Plug Wire Entry:
-
Insulation Height:
0.598" (15.19mm)
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
8A
Wire Gauge or Range - AWG:
-
Torque - Screw:
-
standardLeadTime:
6 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
250 V
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Color:
Black
Series:
COMBICON MCDN
Positions Per Level:
3
Header Orientation:
90°, Right Angle
Pitch:
0.150" (3.81mm)
Number of Levels:
2
ECCN:
EAR99
Contact Material:
-
