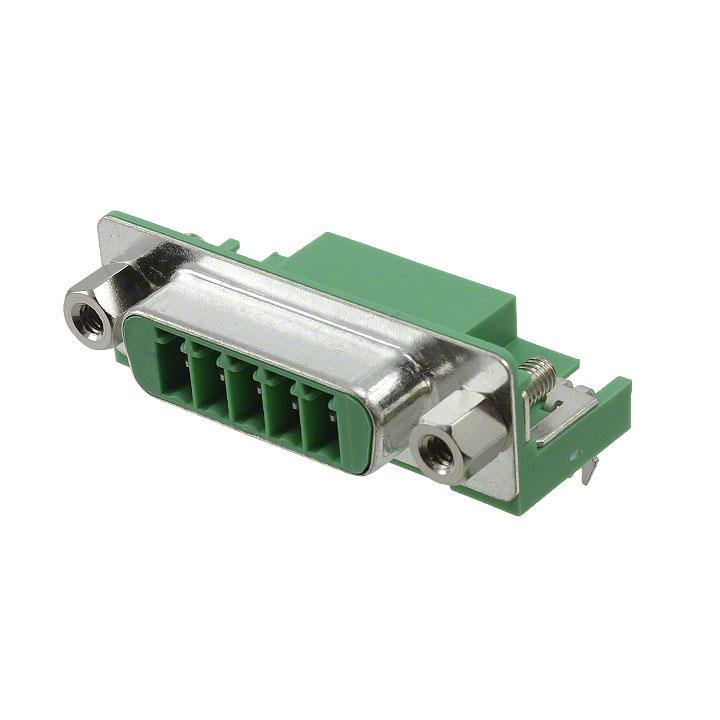

Phoenix Contact 1841899
Product Information
Series:
PSC
Current Rating:
8.0A
Dimensions:
39.2 x 20.8 x 13.7mm
Mounting Type:
Through Hole
Voltage Rating:
250.0 V
Gender:
Male
Body Orientation:
Straight
Termination Method:
Solder
Length:
39.2mm
Housing Material:
PA
Width:
20.8mm
Depth:
13.7mm
Pitch:
3.5mm
Number of Contacts:
5
Series Number:
1841
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Termination Style:
Solder
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
-
Wire Strip Length:
-
Type:
Header, Male Pins, Shrouded (4 Side)
Number of Positions:
5
Contact Tail Length:
0.161" (4.10mm)
Wire Gauge or Range - mm²:
-
Plug Wire Entry:
-
Insulation Height:
0.539" (13.70mm)
REACH Status:
REACH Affected
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
8A
Wire Gauge or Range - AWG:
-
Voltage - UL:
300 V
Torque - Screw:
-
standardLeadTime:
11 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
250 V
Ingress Protection:
-
Features:
Board Lock, DB9 Shape, Mating Flange
Mounting Type:
Through Hole
Color:
Green
Series:
POWER SUBCON
Positions Per Level:
5
Header Orientation:
90°, Right Angle
Current - UL:
8 A
Pitch:
0.138" (3.50mm)
Number of Levels:
1
Contact Material:
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 1841899 on website for other similar products.
We accept all major payment methods for all products including ET12123036. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 1841899 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Plugs and Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 1841899. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 1841899.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12123036 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12123036.
Yes. We ship 1841899 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 1841899. The product psc, is a highly preferred choice for users. The product has a current rating of 8.0a. The given dimensions of the product include 39.2 x 20.8 x 13.7mm. The product is available in through hole configuration. Moreover, the product has a nominal 250.0 v voltage rating. In addition, male is the available "Gender" of the product. It has straight body orientation. It allows solder termination method. Its accurate length is 39.2mm. The product also features robust pa housing material. Furthermore, the product is 20.8mm wide. The product comes in 13.7mm depth. Moreover, the product is 3.5mm. The product contains 5 contacts. It carries [Serial Number] serial number. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. Moreover, it has solder terminal style. The product also features robust polyamide (pa), nylon housing material. It comes in header, male pins, shrouded (4 side) configuration. The product carries possible position value of 5. The typical tail length of the product is [Contact Tail Lenght]. 0.539" (13.70mm) of insulation height. In addition, it is reach affected. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 8a. While 300 v is the typical voltage of the product. It has a long 11 weeks standard lead time. The mating finish of the contact is tin. The nominal voltage of the product is 250 v. The splendid features of the product include board lock, db9 shape, mating flange. It has a classic green colour. The product power subcon, is a highly preferred choice for users. It has 5 positions each level. The product has a 90°, right angle of a header orientation. The typical current includes 8 a. Moreover, the product is 0.138" (3.50mm). The product carries 1 levels. The product is designated with the ear99 code number.
