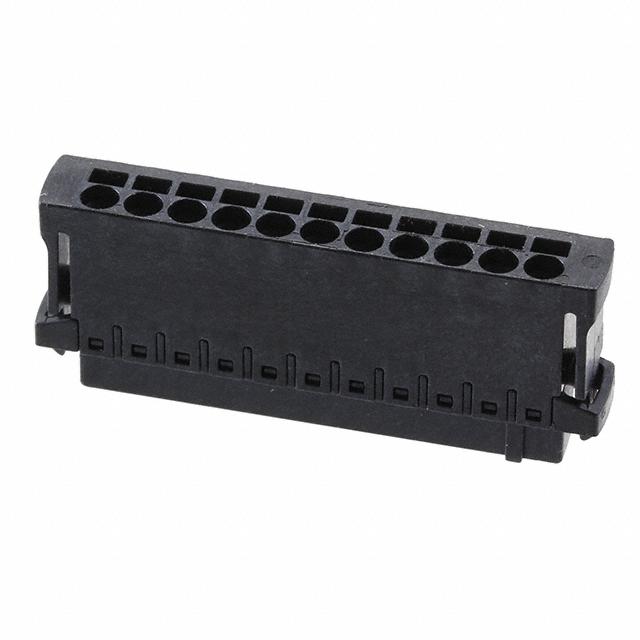

HARTING 14311113101000
Product Information
Series:
Har-Flexicon
Current Rating:
7.3A
Mounting Type:
Cable Mount
Voltage Rating:
160 V
Gender:
Female
Colour:
Black
Material:
Glass Fiber Reinforcement, Liquid Crystaline Polymer
Length:
33.24mm
Termination Method:
Screw
Width:
4.9mm
Depth:
14.2mm
Number of Rows:
1
Pitch:
2.54mm
Number of Contacts:
11
Type:
Plug
Body Orientation:
Vertical
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Screwless - Spring Cage, Tension Clamp
Housing Material:
Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature:
-40°C ~ 125°C
Screw Size:
-
Wire Strip Length:
6mm
Type:
Plug, Female Sockets
Number of Positions:
11
Wire Gauge or Range - mm²:
0.14-0.5mm²
Plug Wire Entry:
180°
Insulation Height:
0.193" (4.90mm)
REACH Status:
REACH Unaffected
edacadModel:
14311113101000 Models
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4834907
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
-
Number of Levels:
1
Contact Tail Length:
-
Voltage - UL:
160 V
Torque - Screw:
-
standardLeadTime:
27 Weeks
Contact Mating Finish:
Tin
Ingress Protection:
-
Features:
Latch Lock
Mounting Type:
Free Hanging (In-Line)
Color:
Black
Series:
har-flexicon®
Positions Per Level:
11
Header Orientation:
-
Current - UL:
6 A
Wire Gauge or Range - AWG:
20-26 AWG
Pitch:
0.100" (2.54mm)
Contact Material:
Copper Alloy
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 14311113101000 on website for other similar products.
We accept all major payment methods for all products including ET12116050. Please check your shopping cart at the time of order.
You can order HARTING brand products with 14311113101000 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Plugs and Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of HARTING 14311113101000. You can also check on our website or by contacting our customer support team for further order details on HARTING 14311113101000.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12116050 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "HARTING" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12116050.
Yes. We ship 14311113101000 Internationally to many countries around the world.
This is manufactured by HARTING. The manufacturer part number is 14311113101000. The product har-flexicon, is a highly preferred choice for users. The product has a current rating of 7.3a. The product is available in cable mount configuration. Moreover, the product has a nominal 160 v voltage rating. In addition, female is the available "Gender" of the product. It has a decent black colour. The product is made from highly stable and reliable glass fiber reinforcement, liquid crystaline polymer. Its accurate length is 33.24mm. It allows screw termination method. Furthermore, the product is 4.9mm wide. The product comes in 14.2mm depth. It comes in 1 of rows. Moreover, the product is 2.54mm. The product contains 11 contacts. It comes in plug configuration. It has vertical body orientation. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. Moreover, it has screwless - spring cage, tension clamp terminal style. The product also features robust liquid crystal polymer (lcp), glass filled housing material. The product has -40°c ~ 125°c operating temperature range. The typical length of the wire strip is 6mm. It comes in plug, female sockets configuration. The product carries possible position value of 11. A 0.14-0.5mm² of wire gauge. It also a 180° plug wire entry. 0.193" (4.90mm) of insulation height. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). The product carries 1 levels. While 160 v is the typical voltage of the product. It has a long 27 weeks standard lead time. The mating finish of the contact is tin. The splendid features of the product include latch lock. The product is available in free hanging (in-line) configuration. It has a classic black colour. The product har-flexicon®, is a highly preferred choice for users. It has 11 positions each level. The typical current includes 6 a. While 20-26 awg is its range or wire gauge. Moreover, the product is 0.100" (2.54mm). The product is made from sturdy copper alloy materials. The product is designated with the ear99 code number.
