Shrouded/Unshrouded:
Shrouded
Row Pitch:
5mm
Housing Material:
Polybutylene Terephthalate
Tail Pin Length:
3.23mm
Connector System:
COMBICON MSTB 2.5
Number of Rows:
2
Contact Plating:
Tin Plated
Product Type:
PCB Header
Maximum Operating Temperature:
100°C
Minimum Operating Temperature:
-40°C
Contact Gender:
Male
Standards/Approvals:
CSA 2585950, cULus E60425-19931011, IEC 60068-2-70, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-3-1, IEC 60512-5-1, IEC 60664-1, IEC 61984, ISO 6988, UL 94 V0, VDE 40050648
Mount Type:
Wave Soldering Mount
Current:
10A
Orientation:
Straight
Series:
MDSTB
Voltage:
32 V
Termination Type:
Solder
Pitch:
5mm
Mating Pin Length:
3.23mm
Number of Contacts:
4
Contact Material:
Copper Alloy
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Termination Style:
Solder
Housing Material:
Polybutylene Terephthalate (PBT)
Operating Temperature:
-
Screw Size:
-
Wire Strip Length:
-
Type:

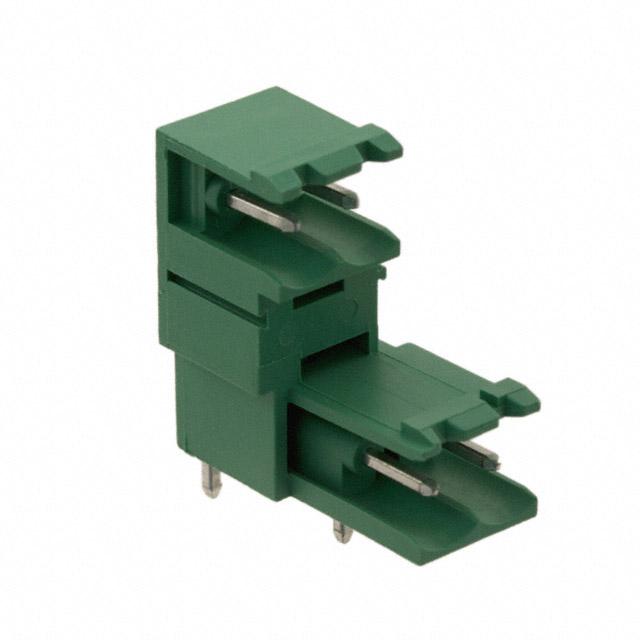

Header, Male Pins, Shrouded (2 Side)
Number of Positions:
4
Contact Tail Length:
0.126" (3.20mm)
Wire Gauge or Range - mm²:
-
Plug Wire Entry:
-
Insulation Height:
0.933" (23.70mm)
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
10A
Wire Gauge or Range - AWG:
-
Voltage - UL:
300 V
Torque - Screw:
-
standardLeadTime:
11 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
400 V
Ingress Protection:
-
Features:
Interlocking (Side)
Mounting Type:
Through Hole
Color:
Green
Series:
COMBICON MDSTB
Positions Per Level:
2
Header Orientation:
90°, Right Angle
Current - UL:
15 A
Pitch:
0.197" (5.00mm)
Number of Levels:
2
Contact Material:
-
ECCN:
EAR99
