Shrouded/Unshrouded:
Shrouded
Row Pitch:
7.62mm
Housing Material:
Polybutylene Terephthalate
Tail Pin Length:
5mm
Connector System:
COMBICON PC 4 hybrid
Number of Rows:
1
Contact Plating:
Tin Plated

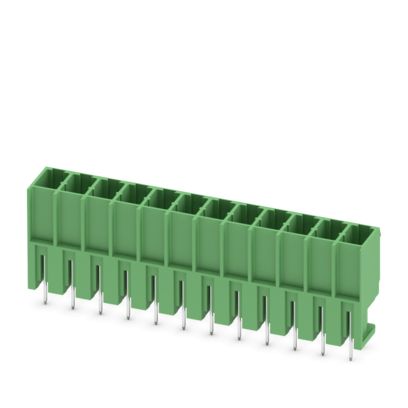

Product Type:
PCB Header
Maximum Operating Temperature:
100°C
Minimum Operating Temperature:
-40°C
Contact Gender:
Male
Standards/Approvals:
BV, CSA, cULus, DNV GL, IEC 60068-2-70, IEC 60068-2-82, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-3-1, IEC 60512-5-1, IEC 60664-1, IEC 61984, ISO 6988, JEDEC JESD 201, LR
Mount Type:
Wave Soldering Mount
Current:
2A
Orientation:
Straight
Series:
PCV
Voltage:
63 V
Termination Type:
Solder
Pitch:
7.62mm
Mating Pin Length:
5mm
Number of Contacts:
12
Contact Material:
Copper Alloy
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Termination Style:
Solder
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
-
Wire Strip Length:
-

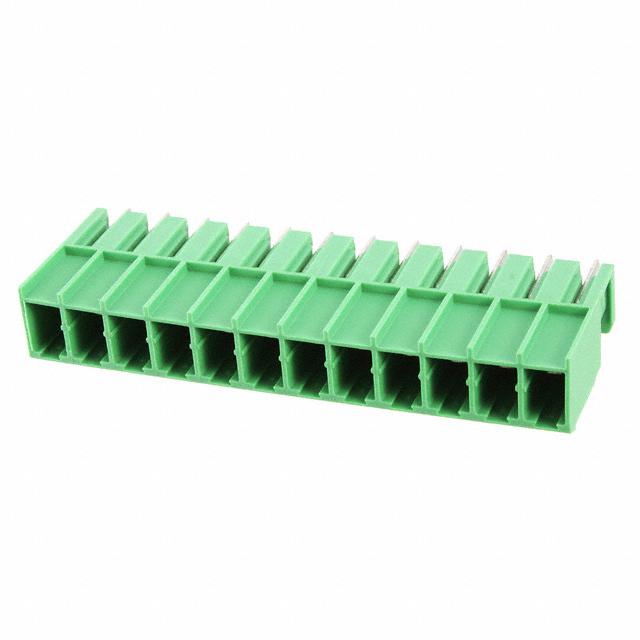

Type:
Header, Male Pins, Shrouded (4 Side)
Number of Positions:
12
Contact Tail Length:
0.197" (5.00mm)
Wire Gauge or Range - mm²:
-
Plug Wire Entry:
-
Insulation Height:
1.142" (29.00mm)
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Manufacturer:
Phoenix Contact
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
20A
Number of Levels:
1
Wire Gauge or Range - AWG:
-
Voltage - UL:
300 V
Torque - Screw:
-
standardLeadTime:
6 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
630 V
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Color:
Green
Series:
COMBICON PCV
Positions Per Level:
12
Packaging:
Bulk
Header Orientation:
Vertical
Current - UL:
20 A
Pitch:
0.300" (7.62mm)
Contact Material:
-
ECCN:
EAR99
