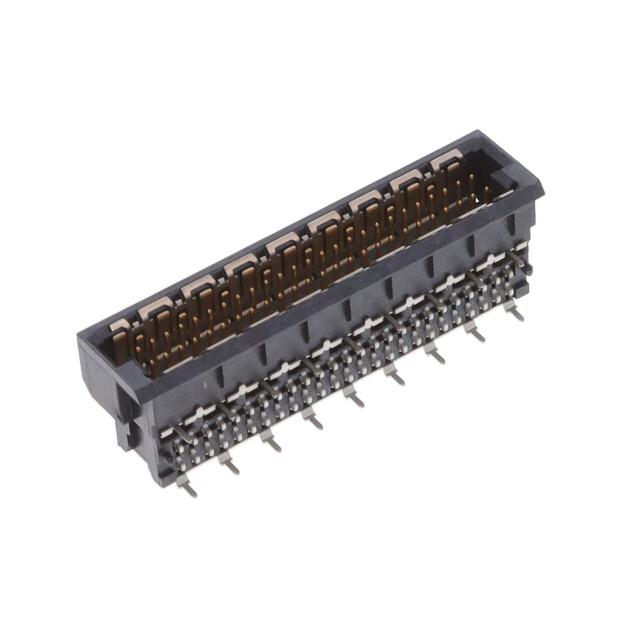

TE Connectivity Erni 374722-E

374722-E TE Connectivity Erni
TE Connectivity Erni

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
157.5µin (4.00µm)
Number of Positions:
50
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.266" (6.75mm)
Voltage Rating:
-
edacadModel:
374722-E Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/16187491
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Liquid Crystal Polymer (LCP)
Package:
Tape & Reel (TR)
Row Spacing - Mating:
0.059" (1.50mm)
Connector Type:
Header
Contact Length - Mating:
0.114" (2.90mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
43 Weeks
Current Rating (Amps):
1A
Contact Length - Post:
0.047" (1.20mm)
Pitch - Mating:
0.039" (1.00mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Surface Mount, Right Angle; Through Hole
Series:
MICROSPEED
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
-
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity Erni. The manufacturer part number is 374722-E. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. Additionally, it features 157.5µin (4.00µm) of post thickness. The product carries possible position value of 50. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.266" (6.75mm) of insulation height. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust liquid crystal polymer (lcp) insulation material. It is shipped in tape & reel (tr) package . It carries 0.059" (1.50mm) of row spacing. header Connector type offer robust functionality. It is 0.114" (2.90mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 43 weeks standard lead time. Additionally, the product's output is 1a. 0.047" (1.20mm) is the given possible contact length (post) values. It has 0.039" (1.00mm) of pitch-mating value. The splendid features of the product include board guide. The product is available in surface mount, right angle; through hole configuration. The product microspeed, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. The product is designated with the ear99 code number.

pdf icon
Design chg 13/NOV/2023(PCN Design/Specification)
pdf icon
374722-E(Datasheets)
pdf icon
PN Change 26/JAN/2023(PCN Part Number)
