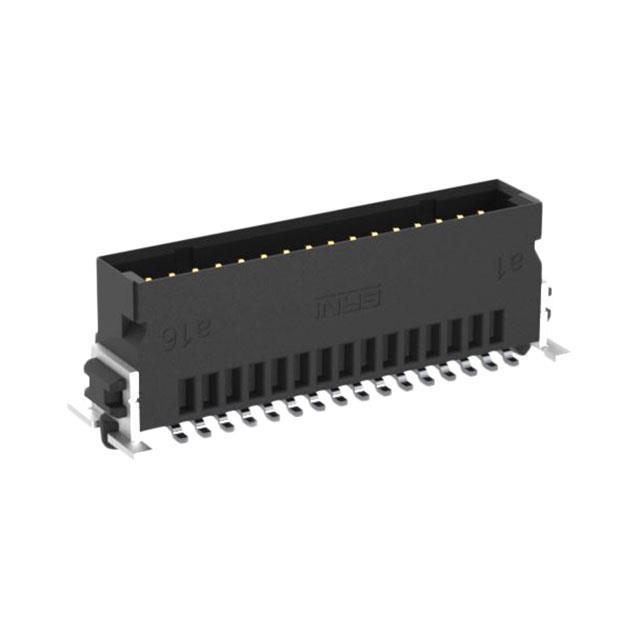

TE Connectivity Erni 254538-E

254538-E TE Connectivity Erni
TE Connectivity Erni

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Number of Positions:
32
Contact Finish - Post:
Tin
edacadModel:
254538-E Models
Overall Contact Length:
-
Insulation Height:
0.325" (8.25mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/16212814
Contact Shape:
Square
Contact Finish Thickness - Mating:
-
Voltage Rating:
-
Row Spacing - Mating:
0.050" (1.27mm)
Connector Type:
Header
Contact Length - Mating:
0.157" (4.00mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
10 Weeks
Current Rating (Amps):
1.7A per Contact
Contact Length - Post:
-
Pitch - Mating:
0.050" (1.27mm)
Ingress Protection:
-
Features:
Board Guide, Pick and Place
Mounting Type:
Surface Mount
Series:
SMC
Packaging:
Tape & Reel (TR)
Insulation Material:
Liquid Crystal Polymer (LCP)
Contact Material:
Copper Alloy
Base Product Number:
-
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity Erni. The manufacturer part number is 254538-E. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. The product carries possible position value of 32. It has possible tin contact post finishing. 0.325" (8.25mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. It carries 0.050" (1.27mm) of row spacing. header Connector type offer robust functionality. It is 0.157" (4.00mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 10 weeks standard lead time. Additionally, the product's output is 1.7a per contact. It has 0.050" (1.27mm) of pitch-mating value. The splendid features of the product include board guide, pick and place. The product is available in surface mount configuration. The product smc, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. It has a robust liquid crystal polymer (lcp) insulation material. The product is made from sturdy copper alloy materials. The product is designated with the ear99 code number.
