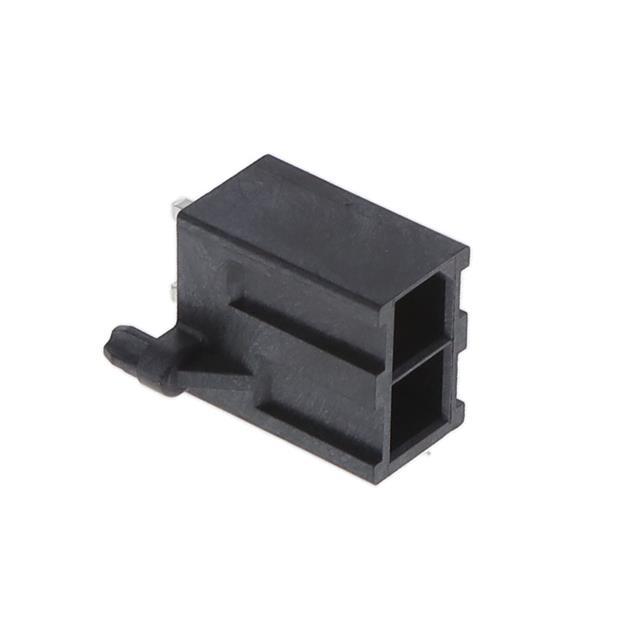

Cvilux USA CP6002P1V00-NH

CP6002P1V00-NH Cvilux USA
Cvilux USA

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
-
Number of Positions:
2
Overall Contact Length:
-
Insulation Height:
0.583" (14.81mm)
Voltage Rating:
600VAC
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Package:
Tray
Row Spacing - Mating:
0.224" (5.70mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
14 Weeks
Current Rating (Amps):
23A
Contact Length - Post:
0.147" (3.73mm)
Pitch - Mating:
0.224" (5.70mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Through Hole
Series:
CP60
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Insulation Material:
Liquid Crystal Polymer (LCP), Halogen Free
ECCN:
EAR99
Checking for live stock

This is manufactured by Cvilux USA. The manufacturer part number is CP6002P1V00-NH. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. The product carries possible position value of 2. 0.583" (14.81mm) of insulation height. Moreover, the product has a nominal 600vac voltage rating. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It is shipped in tray package . It carries 0.224" (5.70mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 14 weeks standard lead time. Additionally, the product's output is 23a. 0.147" (3.73mm) is the given possible contact length (post) values. It has 0.224" (5.70mm) of pitch-mating value. The splendid features of the product include board guide. The product is available in through hole configuration. The product cp60, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. It has a robust liquid crystal polymer (lcp), halogen free insulation material. The product is designated with the ear99 code number.

pdf icon
CP60**P1V00-NH(Datasheets)
