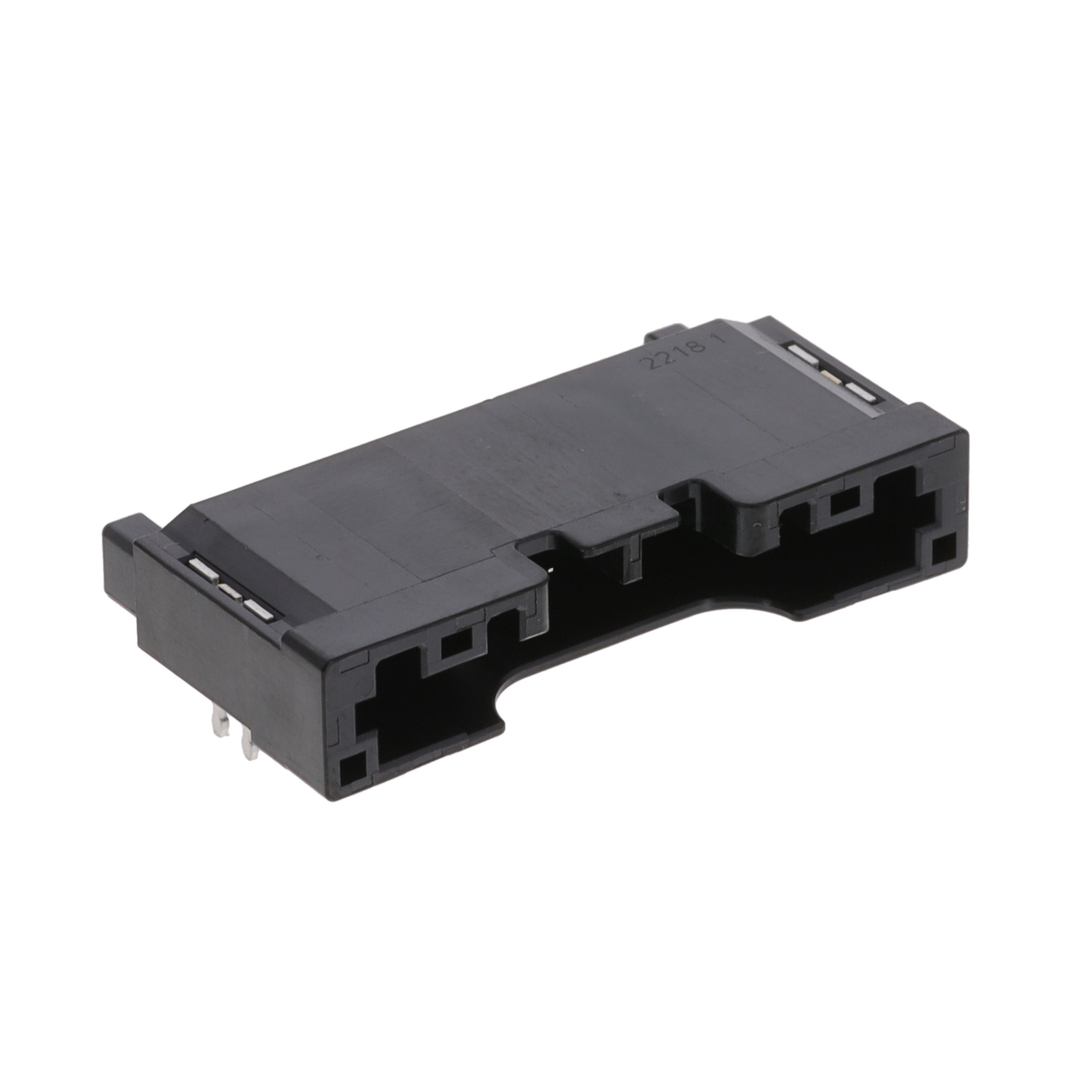

IRISO USA Inc. IMSA-13103B-12Y900
Product Information
Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 125°C
Contact Finish Thickness - Post:
39.4µin (1.00µm)
Number of Positions:
12
Overall Contact Length:
-
Insulation Height:
0.256" (6.50mm)
Voltage Rating:
50VAC
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
1
Material Flammability Rating:
-
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polyphenylene Sulfide (PPS)
Package:
Cut Tape (CT)
Row Spacing - Mating:
-
Connector Type:
Plug
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
39.4µin (1.00µm)
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
16 Weeks
Current Rating (Amps):
3A
Contact Length - Post:
-
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
Solder Retention
Mounting Type:
Surface Mount, Right Angle
Series:
13103B
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
IMSA-13103B
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search IMSA-13103B-12Y900 on website for other similar products.
We accept all major payment methods for all products including ET23266438. Please check your shopping cart at the time of order.
You can order IRISO USA Inc. brand products with IMSA-13103B-12Y900 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of IRISO USA Inc. IMSA-13103B-12Y900. You can also check on our website or by contacting our customer support team for further order details on IRISO USA Inc. IMSA-13103B-12Y900.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET23266438 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "IRISO USA Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET23266438.
Yes. We ship IMSA-13103B-12Y900 Internationally to many countries around the world.
This is manufactured by IRISO USA Inc.. The manufacturer part number is IMSA-13103B-12Y900. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 125°c operating temperature range. Additionally, it features 39.4µin (1.00µm) of post thickness. The product carries possible position value of 12. 0.256" (6.50mm) of insulation height. Moreover, the product has a nominal 50vac voltage rating. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 1 of rows. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust polyphenylene sulfide (pps) insulation material. It is shipped in cut tape (ct) package . plug Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 39.4µin (1.00µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 16 weeks standard lead time. Additionally, the product's output is 3a. It has 0.079" (2.00mm) of pitch-mating value. The splendid features of the product include solder retention. The product is available in surface mount, right angle configuration. The product 13103b, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to imsa-13103b, a base product number of the product. The product is designated with the ear99 code number.
