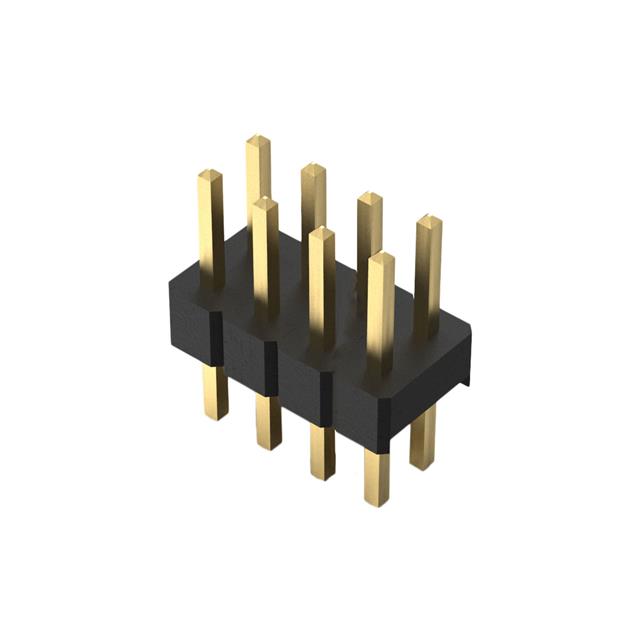

GCT BF050-08-A-B-0400-0300-L-G

BF050-08-A-B-0400-0300-L-G GCT
GCT

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
Flash
Number of Positions:
8
Contact Finish - Post:
Gold
Shrouding:
Unshrouded
Overall Contact Length:
0.354" (9.00mm)
Insulation Height:
0.079" (2.00mm)
Voltage Rating:
250VAC/DC
REACH Status:
REACH Unaffected
edacadModel:
BF050-08-A-B-0400-0300-L-G Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/16396975
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Package:
Box
Row Spacing - Mating:
0.079" (2.00mm)
Connector Type:
Header
Contact Length - Mating:
0.157" (4.00mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
Flash
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
9 Weeks
Current Rating (Amps):
2A per Contact
Contact Length - Post:
0.118" (3.00mm)
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
BF050
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Insulation Material:
Liquid Crystal Polymer (LCP)
ECCN:
EAR99
Checking for live stock

This is manufactured by GCT. The manufacturer part number is BF050-08-A-B-0400-0300-L-G. It has nice contact finishing of gold. Additionally, the product is designed with board to board Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. Additionally, it features flash of post thickness. The product carries possible position value of 8. It has possible gold contact post finishing. Furthermore, a bespoke product features unshrouded. The product has a 0.354" (9.00mm) of overall contact lentgh. 0.079" (2.00mm) of insulation height. Moreover, the product has a nominal 250vac/dc voltage rating. In addition, it is reach unaffected. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It is shipped in box package . It carries 0.079" (2.00mm) of row spacing. header Connector type offer robust functionality. It is 0.157" (4.00mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, flash is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 9 weeks standard lead time. Additionally, the product's output is 2a per contact. 0.118" (3.00mm) is the given possible contact length (post) values. It has 0.079" (2.00mm) of pitch-mating value. The product is available in through hole configuration. The product bf050, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. It has a robust liquid crystal polymer (lcp) insulation material. The product is designated with the ear99 code number.

pdf icon
BF 2.00mm Series Spec(Datasheets)
pdf icon
BF050 Drawing(Datasheets)
pdf icon
GCT EMEA LTD RoHS, REACH, TSCA, CA Prop65(Environmental Information)
