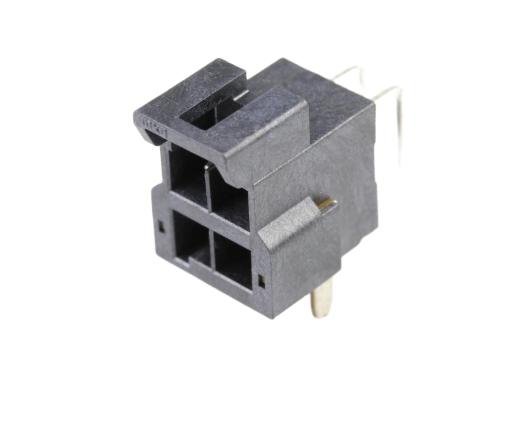

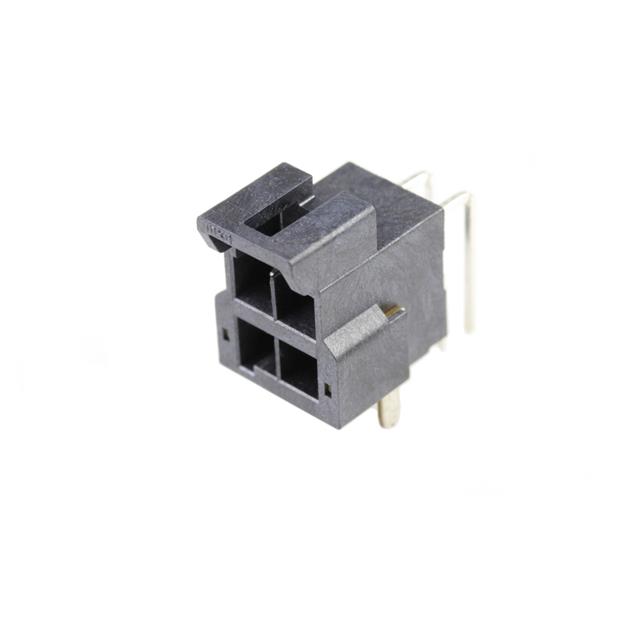

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
60.0µin (1.52µm)
Number of Positions:
4
Contact Finish - Post:
Tin
edacadModel:
1723163204 Models
Overall Contact Length:
-
title:
1723163204
Insulation Height:
0.534" (13.56mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/15761344
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
600VAC/DC
Row Spacing - Mating:
0.181" (4.60mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
15.0µin (0.38µm)
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
31 Weeks
Current Rating (Amps):
Varies by Wire Gauge
Contact Length - Post:
0.126" (3.20mm)
Pitch - Mating:
0.138" (3.50mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Through Hole, Right Angle
Series:
Ultra-Fit 172316
Packaging:
Tray
Insulation Material:
Liquid Crystal Polymer (LCP)
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
172316
ECCN:
EAR99
Connector System:
Wire-to-Board
Tail Pin Length:
3.2mm
Number of Contacts:
4
Orientation:
Right Angle
Housing Material:
Liquid Crystal Polymer
Shrouded/Unshrouded:
Shrouded
Series:
172316
Contact Material:
Copper Alloy
Contact Gender:
Male
Row Pitch:
3.5mm
Current:
11A
Number of Rows:
2
Contact Plating:
Gold
Pitch:
3.5mm
Termination Type:
Through Hole
Product Type:
PCB Header
Maximum Operating Temperature:
120°C
Minimum Operating Temperature:
-40°C
Mount Type:
Through Hole
