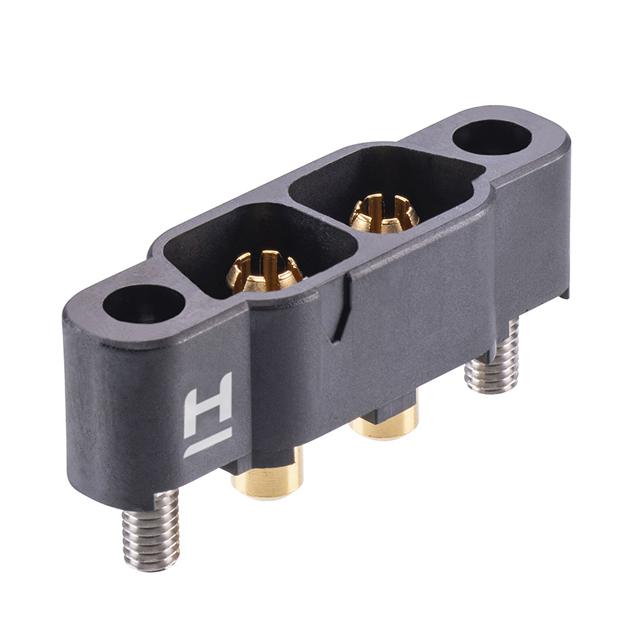

Harwin Inc. KA1-MV10205M1

KA1-MV10205M1 Harwin Inc.
Harwin Inc.

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
Contact Finish - Post:
Gold
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-65°C ~ 150°C
Contact Finish Thickness - Post:
-
Number of Positions:
2
Overall Contact Length:
-
Insulation Height:
0.374" (9.50mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Contact Shape:
Circular
Contact Finish Thickness - Mating:
-
Voltage Rating:
-
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Threaded
Termination:
Solder
standardLeadTime:
6 Weeks
Current Rating (Amps):
60A per Contact
Contact Length - Post:
0.177" (4.50mm)
Pitch - Mating:
0.335" (8.50mm)
Ingress Protection:
-
Features:
Mating Flange, Mounting Flange
Mounting Type:
Through Hole
Series:
KONA
Packaging:
Tube
Mated Stacking Heights:
-
Contact Type:
Male Pin, Power
Contact Material:
Beryllium Copper
Insulation Material:
Polyphenylene Sulfide (PPS)
ECCN:
EAR99
Checking for live stock

This is manufactured by Harwin Inc.. The manufacturer part number is KA1-MV10205M1. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It has possible gold contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -65°c ~ 150°c operating temperature range. The product carries possible position value of 2. 0.374" (9.50mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical circular shape. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, threaded is the Fastening Type of the product. The product features solder termination style. It has a long 6 weeks standard lead time. Additionally, the product's output is 60a per contact. 0.177" (4.50mm) is the given possible contact length (post) values. It has 0.335" (8.50mm) of pitch-mating value. The splendid features of the product include mating flange, mounting flange. The product is available in through hole configuration. The product kona, is a highly preferred choice for users. In addition, tube is the available packaging type of the product. It has typical contact type of male pin, power. The product is made from sturdy beryllium copper materials. It has a robust polyphenylene sulfide (pps) insulation material. The product is designated with the ear99 code number.

pdf icon
KA1-MV10205M1(Product Brief)
pdf icon
Harwin REACH(Environmental Information)
pdf icon
KA1 Series Datasheet(Datasheets)
pdf icon
KA1-MV20205M2(Datasheets)
pdf icon
KA1-0400005(Other Related Documents)
pdf icon
KA1-1410005(Other Related Documents)
pdf icon
KA1-MV1xx05M1 Drawing(Product Drawings)
