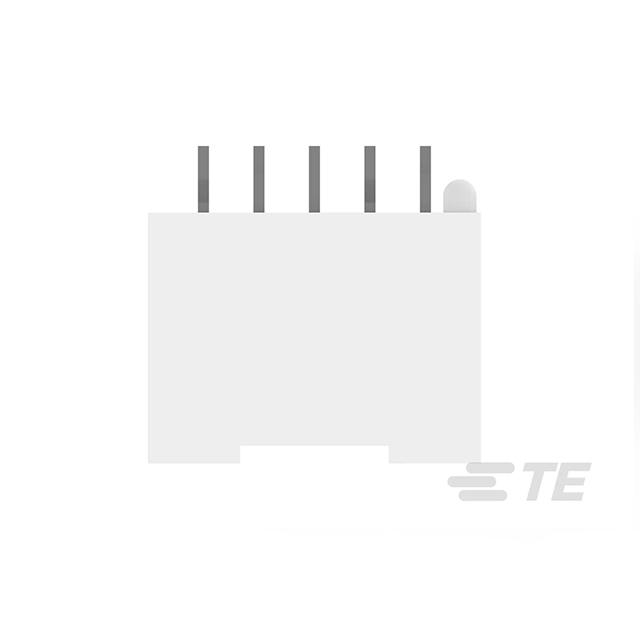

TE Connectivity AMP Connectors 1871843-5
Product Information
Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
Operating Temperature:
-30°C ~ 105°C
Contact Finish Thickness - Post:
39.4µin (1.00µm)
Number of Positions:
5
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.445" (11.30mm)
Voltage Rating:
50VAC/DC
REACH Status:
Vendor Undefined
edacadModel:
1871843-5 Models
Applications:
General Purpose
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/10463669
Insulation Color:
Natural
Contact Shape:
Rectangular
Mated Stacking Heights:
-
Package:
Bag
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
39.4µin (1.00µm)
Fastening Type:
Latch Holder
Termination:
Kinked Pin, Solder
standardLeadTime:
10 Weeks
Current Rating (Amps):
Varies by Wire Gauge
Contact Length - Post:
0.118" (3.00mm)
Pitch - Mating:
0.098" (2.50mm)
Ingress Protection:
-
Features:
Board Guide, Keying Slot
Mounting Type:
Through Hole
Series:
Grace Inertia, GIC
Insulation Material:
Polyamide (PA66), Nylon 6/6, Glass Filled
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
1871843
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 1871843-5 on website for other similar products.
We accept all major payment methods for all products including ET18538443. Please check your shopping cart at the time of order.
You can order TE Connectivity AMP Connectors brand products with 1871843-5 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of TE Connectivity AMP Connectors 1871843-5. You can also check on our website or by contacting our customer support team for further order details on TE Connectivity AMP Connectors 1871843-5.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18538443 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TE Connectivity AMP Connectors" products on our website by using Enrgtech's Unique Manufacturing Part Number ET18538443.
Yes. We ship 1871843-5 Internationally to many countries around the world.
This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 1871843-5. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product has -30°c ~ 105°c operating temperature range. Additionally, it features 39.4µin (1.00µm) of post thickness. The product carries possible position value of 5. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.445" (11.30mm) of insulation height. Moreover, the product has a nominal 50vac/dc voltage rating. In addition, it is vendor undefined. The product is widely employed in general purpose. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, natural is the insulation color of the product. It has a typical rectangular shape. It is shipped in bag package . header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 39.4µin (1.00µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch holder is the Fastening Type of the product. The product features kinked pin, solder termination style. It has a long 10 weeks standard lead time. Additionally, the product's output is varies by wire gauge. 0.118" (3.00mm) is the given possible contact length (post) values. It has 0.098" (2.50mm) of pitch-mating value. The splendid features of the product include board guide, keying slot. The product is available in through hole configuration. The product grace inertia, gic, is a highly preferred choice for users. It has a robust polyamide (pa66), nylon 6/6, glass filled insulation material. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 1871843, a base product number of the product. The product is designated with the ear99 code number.
