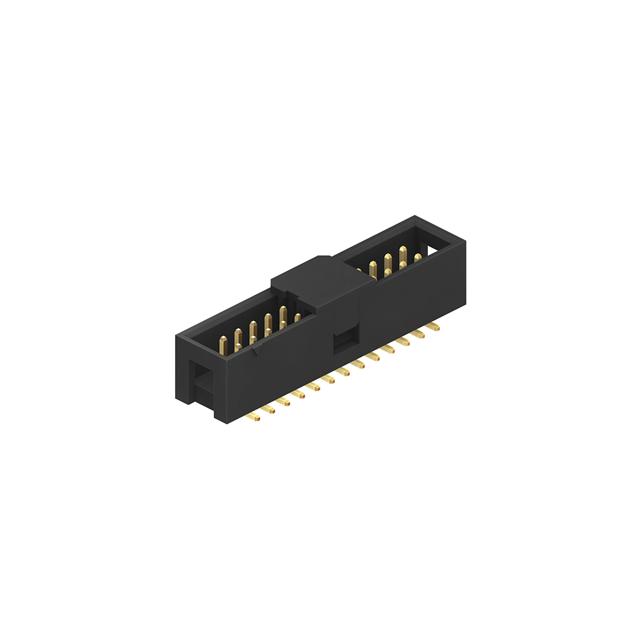

CNC Tech 3020-26-0300-00-TR

3020-26-0300-00-TR CNC Tech
3020-26-0300-00-TR
3020-26-0300-00-TR
CNC Tech

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
Contact Finish - Post:
Gold
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
Flash
Number of Positions:
26
Overall Contact Length:
-
Insulation Height:
0.354" (9.00mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA9T), Nylon 9T
Package:
Tape & Reel (TR)
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
Flash
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
20 Weeks
Current Rating (Amps):
3A (AC/DC)
Contact Length - Post:
-
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Keying Slot, Pick and Place
Mounting Type:
Surface Mount
Series:
-
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
3020-26
ECCN:
EAR99
Checking for live stock

This is manufactured by CNC Tech. The manufacturer part number is 3020-26-0300-00-TR. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It has possible gold contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. Additionally, it features flash of post thickness. The product carries possible position value of 26. 0.354" (9.00mm) of insulation height. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust polyamide (pa9t), nylon 9t insulation material. It is shipped in tape & reel (tr) package . It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, flash is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 20 weeks standard lead time. Additionally, the product's output is 3a (ac/dc). It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include keying slot, pick and place. The product is available in surface mount configuration. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 3020-26, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
CNC Tech RoHS_REACH _CA Prop_Halogen(Environmental Information)
pdf icon
Material Change Notice 14/Jan/2021(PCN Design/Specification)
pdf icon
3020-XX-0300-00-TR Drawing(Datasheets)
pdf icon
Soldering Guide 3X10,3X20,3221 Series(Other Related Documents)
pdf icon
3020-xx-0300-00-TR Drawing(Product Drawings)
