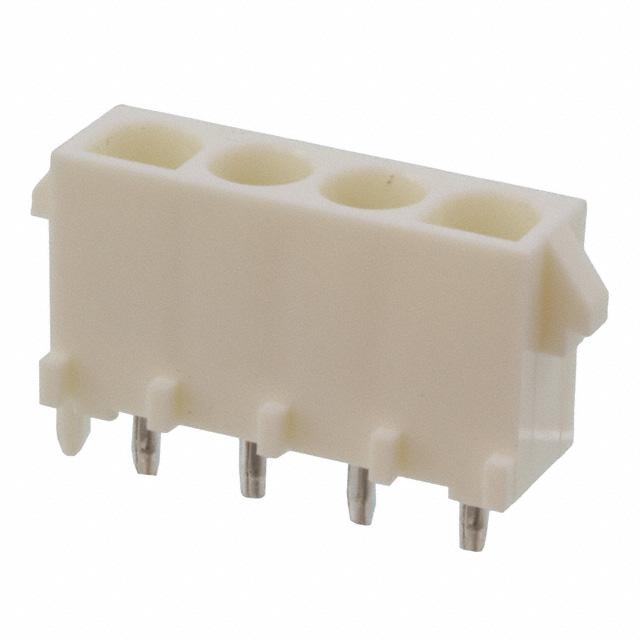

Molex 0432550075

0432550075 Molex
0432550075
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
-
Number of Positions:
4
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.550" (13.97mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
0432550075 Models
Applications:
Automotive, General Purpose, Industrial
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/3044587
Insulation Color:
Natural
Contact Shape:
Circular
Mated Stacking Heights:
-
Insulation Material:
Polybutylene Terephthalate (PBT)
Package:
Tray
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
137.8µin (3.50µm)
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
16 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.169" (4.30mm)
Pitch - Mating:
0.250" (6.35mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Through Hole
Series:
MLX 43255
Contact Type:
Male Pin
Contact Material:
-
Base Product Number:
043255
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0432550075. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product carries possible position value of 4. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.550" (13.97mm) of insulation height. In addition, it is reach unaffected. The product is widely employed in automotive, general purpose, industrial. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, natural is the insulation color of the product. It has a typical circular shape. It has a robust polybutylene terephthalate (pbt) insulation material. It is shipped in tray package . header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 137.8µin (3.50µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 16 weeks standard lead time. 0.169" (4.30mm) is the given possible contact length (post) values. It has 0.250" (6.35mm) of pitch-mating value. The splendid features of the product include board guide. The product is available in through hole configuration. The product mlx 43255, is a highly preferred choice for users. It has typical contact type of male pin. Moreover, it corresponds to 043255, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
43255-0075.pdf(3D Drawings)
pdf icon
0432550075 Drawing(Product Drawings)
pdf icon
432550075 RoHS Cert of Compliance(Environmental Information)
