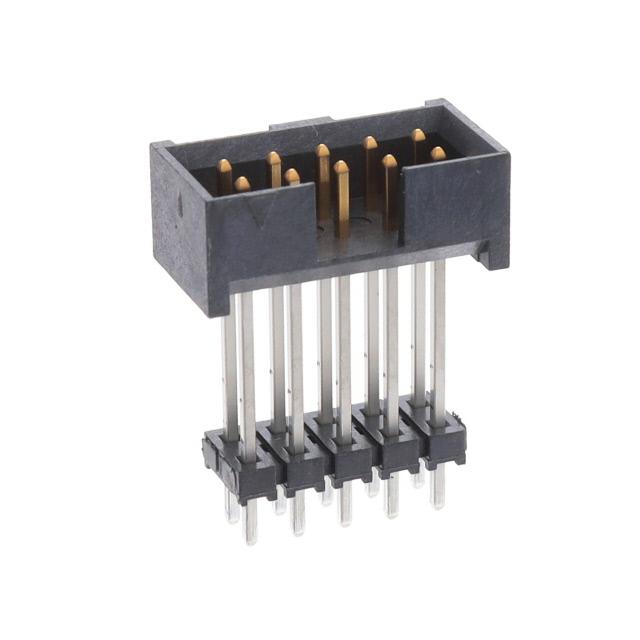

Samtec Inc. ZLTMM-105-69-F-D-529
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Board
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
-
Number of Positions:
10
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
0.614" (15.60mm)
Insulation Height:
0.529" (13.44mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
ZLTMM-105-69-F-D-529 Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
-
edacadModelUrl:
/en/models/10219189
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA), Nylon
Package:
Bulk
Row Spacing - Mating:
0.079" (2.00mm)
Connector Type:
Header, Elevated
Contact Length - Mating:
0.120" (3.05mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
3.00µin (0.076µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
6 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.110" (2.79mm)
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
Keying Slot
Mounting Type:
Through Hole
Series:
Flex Stack, ZLTMM
Contact Type:
Male Pin
Contact Material:
Phosphor Bronze
Base Product Number:
ZLTMM-105
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search ZLTMM-105-69-F-D-529 on website for other similar products.
We accept all major payment methods for all products including ET18327092. Please check your shopping cart at the time of order.
You can order Samtec Inc. brand products with ZLTMM-105-69-F-D-529 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Samtec Inc. ZLTMM-105-69-F-D-529. You can also check on our website or by contacting our customer support team for further order details on Samtec Inc. ZLTMM-105-69-F-D-529.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18327092 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Samtec Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET18327092.
Yes. We ship ZLTMM-105-69-F-D-529 Internationally to many countries around the world.
This is manufactured by Samtec Inc.. The manufacturer part number is ZLTMM-105-69-F-D-529. It has nice contact finishing of gold. Additionally, the product is designed with board to board Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. The product carries possible position value of 10. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. The product has a 0.614" (15.60mm) of overall contact lentgh. 0.529" (13.44mm) of insulation height. In addition, it is reach unaffected. It comes in 2 of rows. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust polyamide (pa), nylon insulation material. It is shipped in bulk package . It carries 0.079" (2.00mm) of row spacing. header, elevated Connector type offer robust functionality. It is 0.120" (3.05mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 3.00µin (0.076µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 6 weeks standard lead time. 0.110" (2.79mm) is the given possible contact length (post) values. It has 0.079" (2.00mm) of pitch-mating value. The splendid features of the product include keying slot. The product is available in through hole configuration. The product flex stack, zltmm, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to zltmm-105, a base product number of the product. The product is designated with the ear99 code number.
