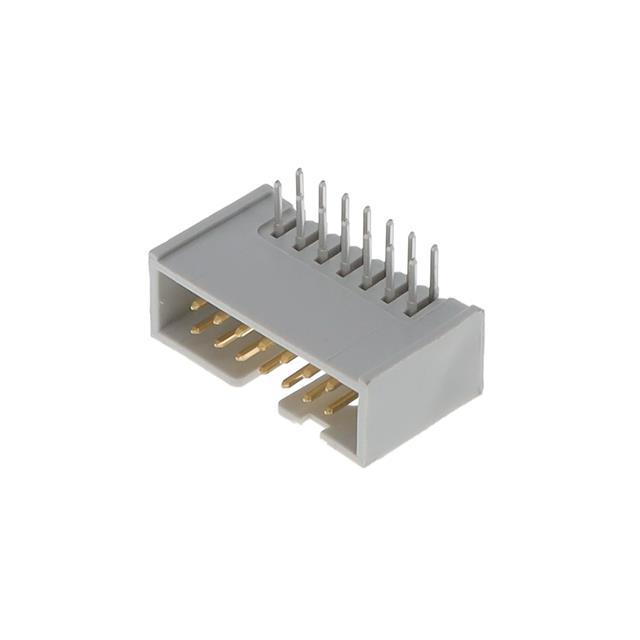

Amphenol ICC (FCI) 86130141013345E1LF

86130141013345E1LF Amphenol ICC (FCI)
Amphenol ICC (FCI)

Product Information

Contact Finish - Mating:
Gold or Gold-Palladium
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
-
Number of Positions:
14
Overall Contact Length:
-
Insulation Height:
0.344" (8.75mm)
Insulation Color:
Gray
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Contact Shape:
Circular
Mated Stacking Heights:
-
Voltage Rating:
250V
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.240" (6.10mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
17 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.165" (4.19mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Keying Slot
Mounting Type:
Through Hole, Right Angle
Series:
Quickie™
Packaging:
Tray
Insulation Material:
Polybutylene Terephthalate (PBT)
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
86130141
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol ICC (FCI). The manufacturer part number is 86130141013345E1LF. It has nice contact finishing of gold or gold-palladium. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. The product carries possible position value of 14. 0.344" (8.75mm) of insulation height. In addition, gray is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical circular shape. Moreover, the product has a nominal 250v voltage rating. It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. It is 0.240" (6.10mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 17 weeks standard lead time. 0.165" (4.19mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include keying slot. The product is available in through hole, right angle configuration. The product quickie™, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has a robust polybutylene terephthalate (pbt) insulation material. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 86130141, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
bwb_quickie Datasheet(Datasheets)
pdf icon
86130142114345E1LF(Other Related Documents)
pdf icon
C-8613-0042 Drawing(Product Drawings)
pdf icon
quickie productpresentation Other Related Document(UNKNOWN TYPE)
