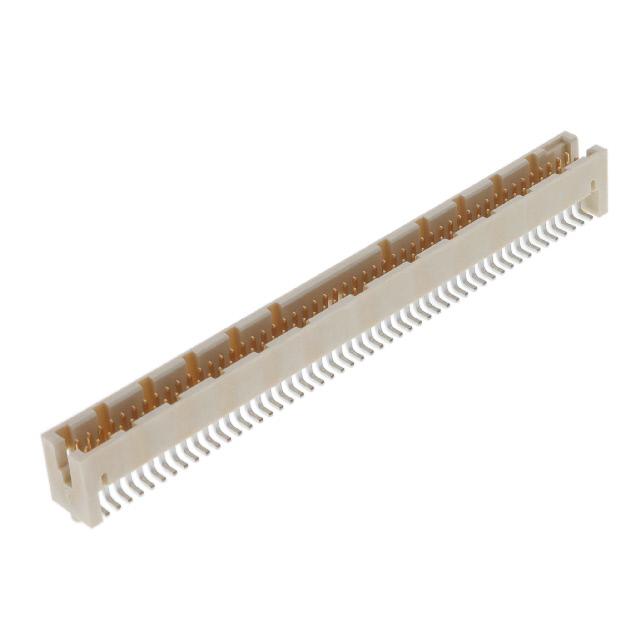

Amphenol ICC (FCI) 90098-150LF

90098-150LF Amphenol ICC (FCI)
Amphenol ICC (FCI)

Product Information

Contact Finish - Mating:
Gold or Gold, GXT™
Style:
Board to Board
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-55°C ~ 130°C
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
100
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.298" (7.57mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
90098-150LF Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1536617
Insulation Color:
Natural
Contact Shape:
Square
Mated Stacking Heights:
8.26mm
Insulation Material:
Thermoplastic, Glass Filled
Package:
Tube
Row Spacing - Mating:
0.050" (1.27mm)
Connector Type:
Header
Contact Length - Mating:
0.130" (3.30mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
8 Weeks
Current Rating (Amps):
-
Contact Length - Post:
-
Pitch - Mating:
0.050" (1.27mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Surface Mount
Series:
Rib-Cage™ III
Contact Type:
Male Pin
Contact Material:
-
Base Product Number:
90098
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol ICC (FCI). The manufacturer part number is 90098-150LF. It has nice contact finishing of gold or gold, gxt™. Additionally, the product is designed with board to board Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -55°c ~ 130°c operating temperature range. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 100. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.298" (7.57mm) of insulation height. In addition, it is reach unaffected. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, natural is the insulation color of the product. It has a typical square shape. The mated stacking heights of a bespoke product includes 8.26mm. It has a robust thermoplastic, glass filled insulation material. It is shipped in tube package . It carries 0.050" (1.27mm) of row spacing. header Connector type offer robust functionality. It is 0.130" (3.30mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 8 weeks standard lead time. It has 0.050" (1.27mm) of pitch-mating value. The splendid features of the product include board guide. The product is available in surface mount configuration. The product rib-cage™ iii, is a highly preferred choice for users. It has typical contact type of male pin. Moreover, it corresponds to 90098, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Connector Header Drawing(Datasheets)
pdf icon
Housing Color 20/Sept/2008(PCN Design/Specification)
