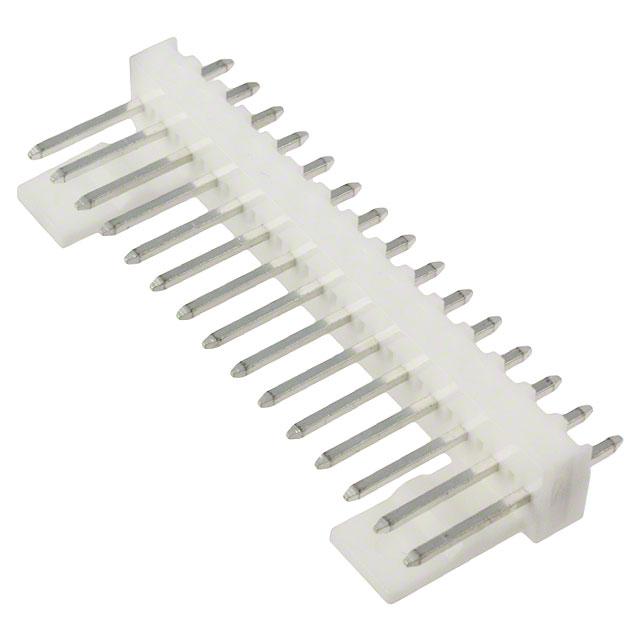

Molex 0022272151

0022272151 Molex
0022272151
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Number of Positions:
15
Contact Finish - Post:
Tin
edacadModel:
0022272151 Models
Overall Contact Length:
0.560" (14.22mm)
Insulation Height:
0.461" (11.70mm)
Insulation Color:
Natural
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 1 Wall
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2421298
Contact Shape:
Square
Contact Finish Thickness - Mating:
100.0µin (2.54µm)
Voltage Rating:
-
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.295" (7.49mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Friction Lock
Termination:
Solder
standardLeadTime:
40 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.140" (3.56mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
KK254, 6410
Packaging:
Bulk
Insulation Material:
Polyamide (PA), Nylon
Contact Material:
Brass
Base Product Number:
002227
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0022272151. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product carries possible position value of 15. It has possible tin contact post finishing. The product has a 0.560" (14.22mm) of overall contact lentgh. 0.461" (11.70mm) of insulation height. In addition, natural is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 1 wall. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. However, 100.0µin (2.54µm) is the "Contact Finish Thickness - Mating" of the product. header Connector type offer robust functionality. It is 0.295" (7.49mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, friction lock is the Fastening Type of the product. The product features solder termination style. It has a long 40 weeks standard lead time. 0.140" (3.56mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole configuration. The product kk254, 6410, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polyamide (pa), nylon insulation material. The product is made from sturdy brass materials. Moreover, it corresponds to 002227, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
0022272151 RoHS Cert of Compliance(Environmental Information)
pdf icon
Mult Devs Supplier 09/Dec/2022(PCN Assembly/Origin)
pdf icon
Mini-FIt,KK Plating 01/Nov/2011(PCN Design/Specification)
pdf icon
2.50, 2.54mm Centerline Pitch Spec(Datasheets)
pdf icon
22272151(Datasheets)
pdf icon
0022272151.pdf(3D Drawings)
