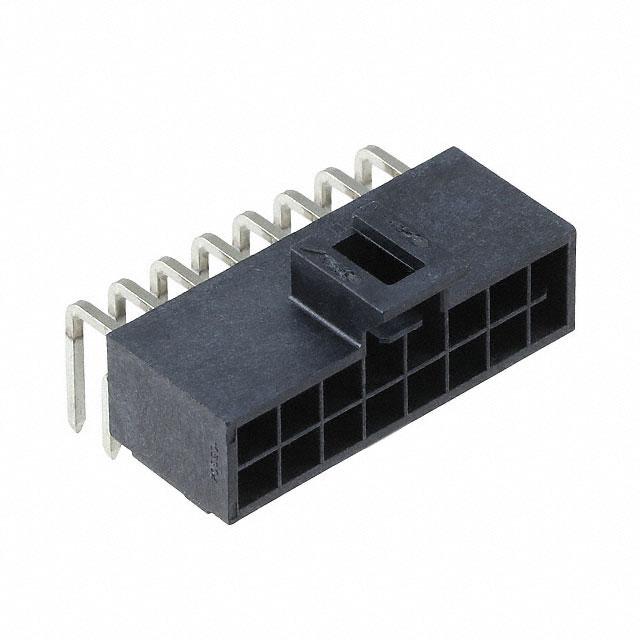

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
59.0µin (1.50µm)
Number of Positions:
16
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.247" (6.28mm)
Voltage Rating:
250V
REACH Status:
REACH Unaffected
edacadModel:
1053141116 Models
Applications:
Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
Number of Rows:
2
Material Flammability Rating:
-
edacadModelUrl:
/en/models/7693194
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Liquid Crystal Polymer (LCP)
Package:
Tray
Row Spacing - Mating:
0.098" (2.50mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
59.0µin (1.50µm)
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
13 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.138" (3.50mm)
Pitch - Mating:
0.098" (2.50mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Through Hole, Right Angle
Series:
Nano-Fit 105314
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
105314
ECCN:
EAR99
Connector System:
Wire-to-Board
Tail Pin Length:
3.2mm
Number of Contacts:
16
Orientation:
Right Angle
Housing Material:
Liquid Crystal Polymer
Shrouded/Unshrouded:
Shrouded
Series:
105314
Contact Material:
Brass
Contact Gender:
Male
Row Pitch:
2.5mm
Current:
7.5A
Number of Rows:
2
Contact Plating:
Tin
Pitch:
2.5mm
Termination Type:
Through Hole
Product Type:
PCB Header
Maximum Operating Temperature:
125°C
Minimum Operating Temperature:
-40°C
Mount Type:
Through Hole
