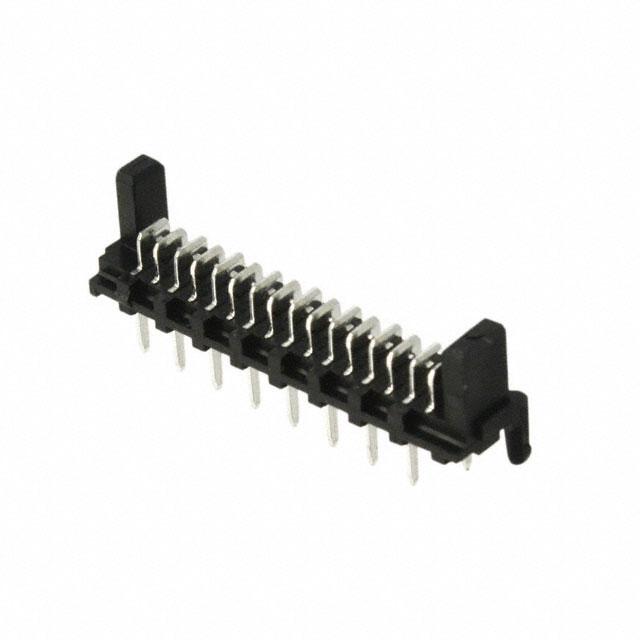

Molex 0903250016

0903250016 Molex
0903250016
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Number of Positions:
16
Contact Finish - Post:
Tin
edacadModel:
0903250016 Models
Overall Contact Length:
-
Insulation Height:
0.252" (6.40mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 2 Wall
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/404185
Contact Shape:
Rectangular
Contact Finish Thickness - Mating:
118.1µin (3.00µm)
Voltage Rating:
250V
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Blade
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
16 Weeks
Current Rating (Amps):
1.2A
Contact Length - Post:
0.130" (3.30mm)
Pitch - Mating:
0.050" (1.27mm)
Ingress Protection:
-
Features:
Board Lock
Mounting Type:
Through Hole
Series:
Picoflex PF-50 90325
Packaging:
Bulk
Insulation Material:
Polybutylene Terephthalate (PBT), Glass Filled
Contact Material:
Brass
Base Product Number:
090325
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0903250016. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. The product carries possible position value of 16. It has possible tin contact post finishing. 0.252" (6.40mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 2 wall. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical rectangular shape. However, 118.1µin (3.00µm) is the "Contact Finish Thickness - Mating" of the product. Moreover, the product has a nominal 250v voltage rating. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male blade. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 16 weeks standard lead time. Additionally, the product's output is 1.2a. 0.130" (3.30mm) is the given possible contact length (post) values. It has 0.050" (1.27mm) of pitch-mating value. The splendid features of the product include board lock. The product is available in through hole configuration. The product picoflex pf-50 90325, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polybutylene terephthalate (pbt), glass filled insulation material. The product is made from sturdy brass materials. Moreover, it corresponds to 090325, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
903250016 RoHS Cert of Compliance(Environmental Information)
pdf icon
Raw Material Supplier 04/Jan/2019(PCN Assembly/Origin)
pdf icon
0903250016(Datasheets)
pdf icon
Picoflex Brochure(Datasheets)
pdf icon
0903250016(Product Drawings)
