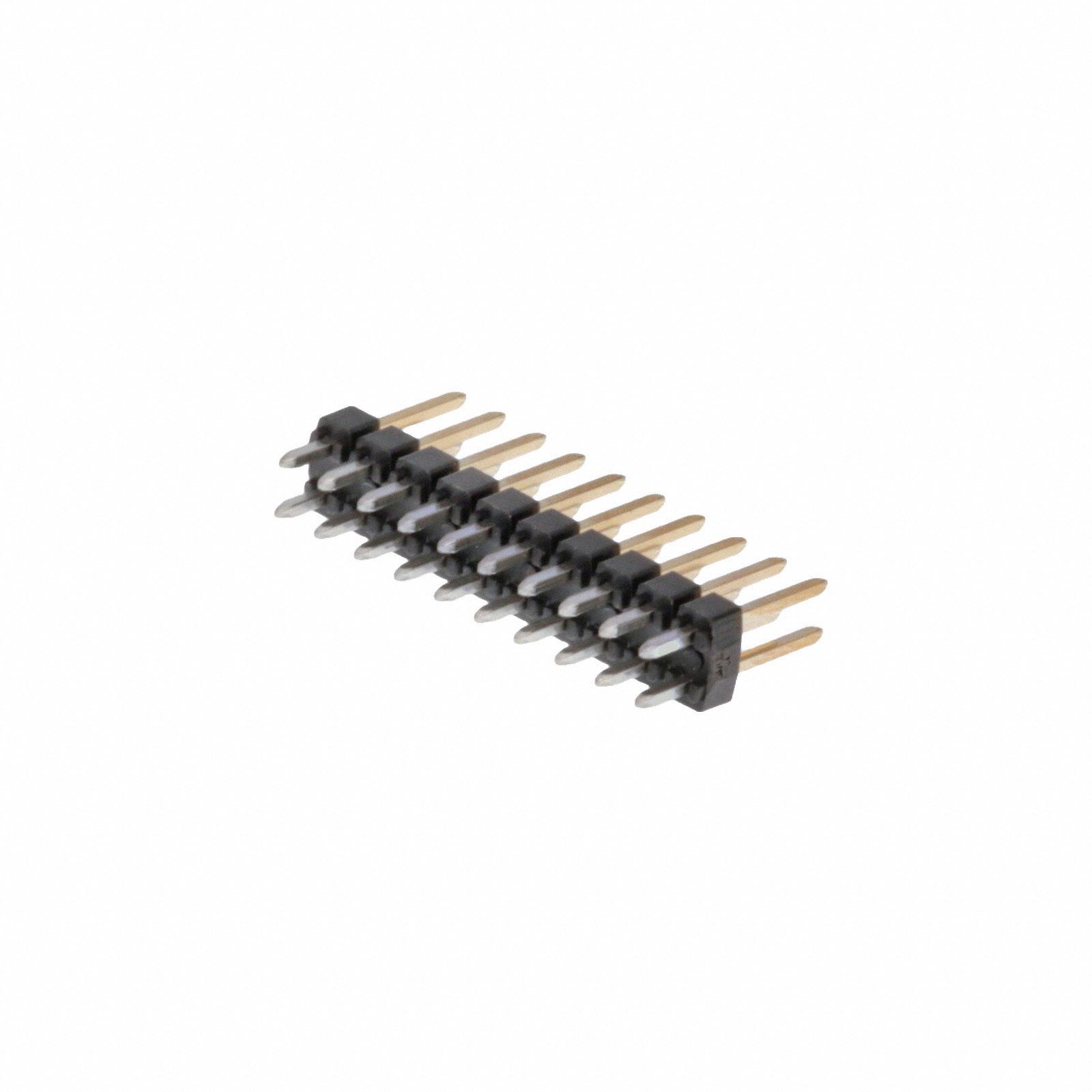

Molex 0901310770

0901310770 Molex
0901310770
Molex

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Number of Positions:
20
Contact Finish - Post:
Tin
edacadModel:
0901310770 Models
Overall Contact Length:
0.478" (12.15mm)
Insulation Height:
0.098" (2.50mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Unshrouded
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/760860
Contact Shape:
Square
Contact Finish Thickness - Mating:
15.0µin (0.38µm)
Voltage Rating:
-
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header, Breakaway
Contact Length - Mating:
0.266" (6.75mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
31 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.114" (2.90mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
C-Grid III 90131
Packaging:
Bulk
Insulation Material:
Polyester, Glass Filled
Contact Material:
Brass
Base Product Number:
090131
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0901310770. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product carries possible position value of 20. It has possible tin contact post finishing. The product has a 0.478" (12.15mm) of overall contact lentgh. 0.098" (2.50mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features unshrouded. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. However, 15.0µin (0.38µm) is the "Contact Finish Thickness - Mating" of the product. It carries 0.100" (2.54mm) of row spacing. header, breakaway Connector type offer robust functionality. It is 0.266" (6.75mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 31 weeks standard lead time. 0.114" (2.90mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole configuration. The product c-grid iii 90131, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polyester, glass filled insulation material. The product is made from sturdy brass materials. Moreover, it corresponds to 090131, a base product number of the product. The product is designated with the ear99 code number.
