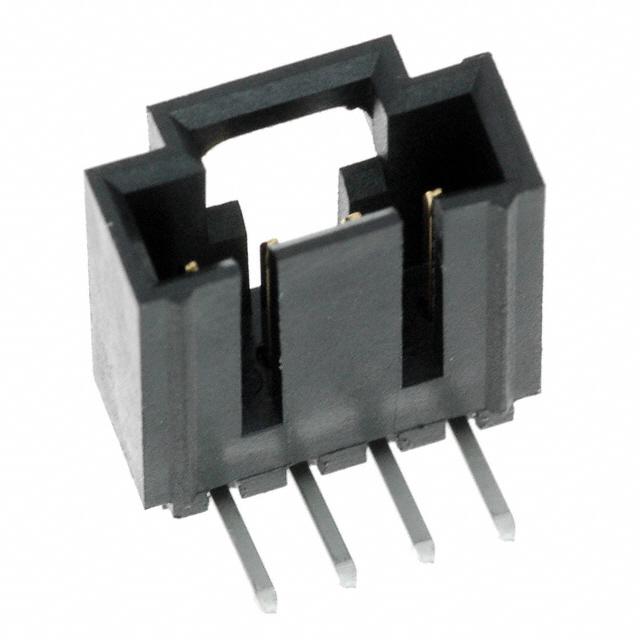

Molex 0705530108

0705530108 Molex
0705530108
Molex

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Number of Positions:
4
Contact Finish - Post:
Tin
edacadModel:
0705530108 Models
Overall Contact Length:
-
Insulation Height:
0.215" (5.45mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1643388
Contact Shape:
Square
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Voltage Rating:
250V
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.240" (6.10mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
35 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.130" (3.30mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
SL 70553
Packaging:
Tube
Insulation Material:
Polyester, Glass Filled
Contact Material:
Phosphor Bronze
Base Product Number:
070553
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0705530108. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. The product carries possible position value of 4. It has possible tin contact post finishing. 0.215" (5.45mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Moreover, the product has a nominal 250v voltage rating. header Connector type offer robust functionality. It is 0.240" (6.10mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 35 weeks standard lead time. 0.130" (3.30mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole, right angle configuration. The product sl 70553, is a highly preferred choice for users. In addition, tube is the available packaging type of the product. It has a robust polyester, glass filled insulation material. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to 070553, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
0705530108 RoHS Cert of Compliance(Environmental Information)
pdf icon
Mult Devs Supplier 02/Dec/2022(PCN Assembly/Origin)
pdf icon
Multiple Devices Raw Material Manufacturing 11/Nov/2014(PCN Design/Specification)
pdf icon
705530108(Datasheets)
pdf icon
70400 Prod Spec(Datasheets)
pdf icon
70553-0yyy(Datasheets)
