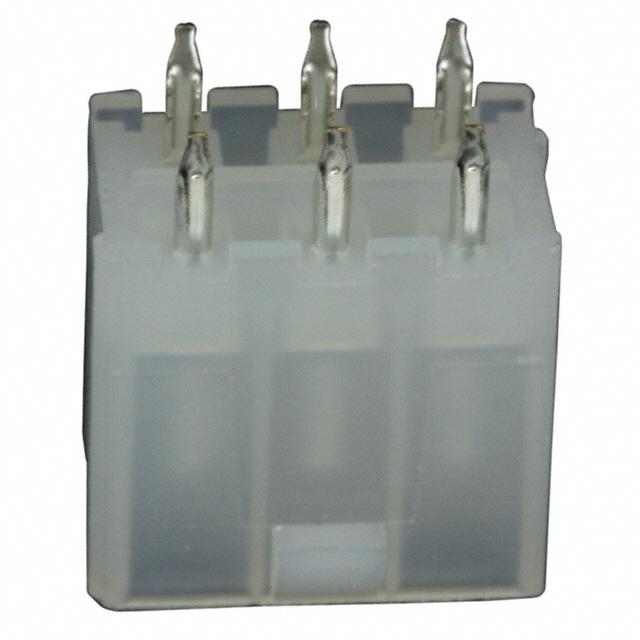

Molex 0039293066

0039293066 Molex
0039293066
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
35.0µin (0.90µm)
Number of Positions:
6
Contact Finish - Post:
Tin
edacadModel:
0039293066 Models
Overall Contact Length:
-
Insulation Height:
0.504" (12.80mm)
Insulation Color:
Natural
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
General Purpose, Industrial, Telecommunications
Number of Rows:
2
Material Flammability Rating:
UL94 V-2
edacadModelUrl:
/en/models/2002652
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
-
Row Spacing - Mating:
0.165" (4.20mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
35.4µin (0.90µm)
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
13 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.138" (3.50mm)
Pitch - Mating:
0.165" (4.20mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
Mini-Fit Jr 5566
Packaging:
Bulk
Insulation Material:
Polyamide (PA66), Nylon 6/6
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
003929
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0039293066. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. Additionally, it features 35.0µin (0.90µm) of post thickness. The product carries possible position value of 6. It has possible tin contact post finishing. 0.504" (12.80mm) of insulation height. In addition, natural is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in general purpose, industrial, telecommunications. It comes in 2 of rows. It carries ul94 v-2 of material flammability rating. It has a typical square shape. It carries 0.165" (4.20mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 35.4µin (0.90µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 13 weeks standard lead time. 0.138" (3.50mm) is the given possible contact length (post) values. It has 0.165" (4.20mm) of pitch-mating value. The product is available in through hole configuration. The product mini-fit jr 5566, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polyamide (pa66), nylon 6/6 insulation material. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 003929, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
39-29-3066 RoHS Cert of Compliance(Environmental Information)
pdf icon
Tooling 17/Dec/2018(PCN Assembly/Origin)
pdf icon
Mult Devs Product Improvement 17/Feb/2022(PCN Design/Specification)
pdf icon
Mult Devs Cancel Product Improvement 09/Feb/2022(PCN Design/Specification)
pdf icon
5566 Series Tooling 03/Jul/2014(PCN Other)
pdf icon
5556-001 Prod Spec(Datasheets)
pdf icon
0039293066(Datasheets)
pdf icon
Mini-Fit Jr Color Variation Spec(Other Related Documents)
pdf icon
Mini-Fit Jr Test Summary(Other Related Documents)
pdf icon
0039293066.pdf(3D Drawings)
pdf icon
0039293066(Product Drawings)
