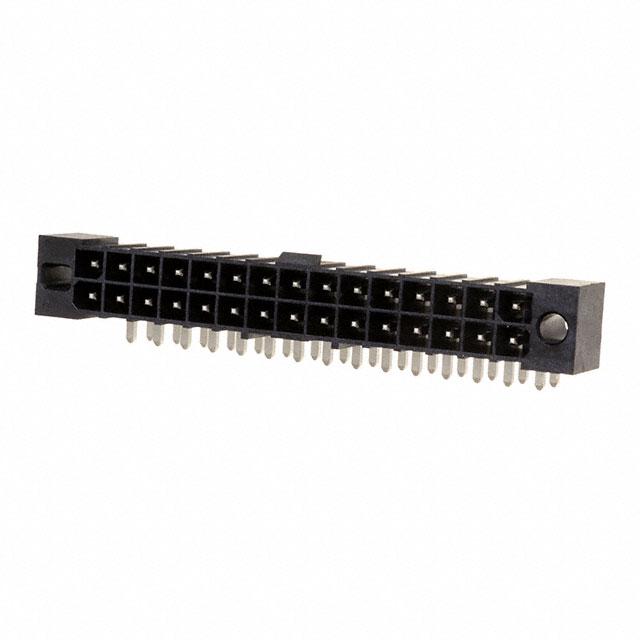

Samtec Inc. IPBT-115-H1-T-D-RA-GP
Product Information
Contact Finish - Mating:
Tin
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 105°C
Contact Finish Thickness - Post:
-
Number of Positions:
30
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.424" (10.77mm)
Voltage Rating:
400VAC, 565VDC
REACH Status:
REACH Unaffected
edacadModel:
IPBT-115-H1-T-D-RA-GP Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/9519868
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Liquid Crystal Polymer (LCP)
Package:
Tube
Row Spacing - Mating:
0.165" (4.20mm)
Connector Type:
Header
Contact Length - Mating:
0.260" (6.60mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
6 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.147" (3.73mm)
Pitch - Mating:
0.165" (4.20mm)
Ingress Protection:
-
Features:
Mating Flange
Mounting Type:
Through Hole, Right Angle
Series:
Power Mate® IPBT
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
IPBT-115
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search IPBT-115-H1-T-D-RA-GP on website for other similar products.
We accept all major payment methods for all products including ET17291507. Please check your shopping cart at the time of order.
You can order Samtec Inc. brand products with IPBT-115-H1-T-D-RA-GP directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Samtec Inc. IPBT-115-H1-T-D-RA-GP. You can also check on our website or by contacting our customer support team for further order details on Samtec Inc. IPBT-115-H1-T-D-RA-GP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17291507 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Samtec Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET17291507.
Yes. We ship IPBT-115-H1-T-D-RA-GP Internationally to many countries around the world.
This is manufactured by Samtec Inc.. The manufacturer part number is IPBT-115-H1-T-D-RA-GP. It has nice contact finishing of tin. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 105°c operating temperature range. The product carries possible position value of 30. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.424" (10.77mm) of insulation height. Moreover, the product has a nominal 400vac, 565vdc voltage rating. In addition, it is reach unaffected. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust liquid crystal polymer (lcp) insulation material. It is shipped in tube package . It carries 0.165" (4.20mm) of row spacing. header Connector type offer robust functionality. It is 0.260" (6.60mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 6 weeks standard lead time. 0.147" (3.73mm) is the given possible contact length (post) values. It has 0.165" (4.20mm) of pitch-mating value. The splendid features of the product include mating flange. The product is available in through hole, right angle configuration. The product power mate® ipbt, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to ipbt-115, a base product number of the product. The product is designated with the ear99 code number.
