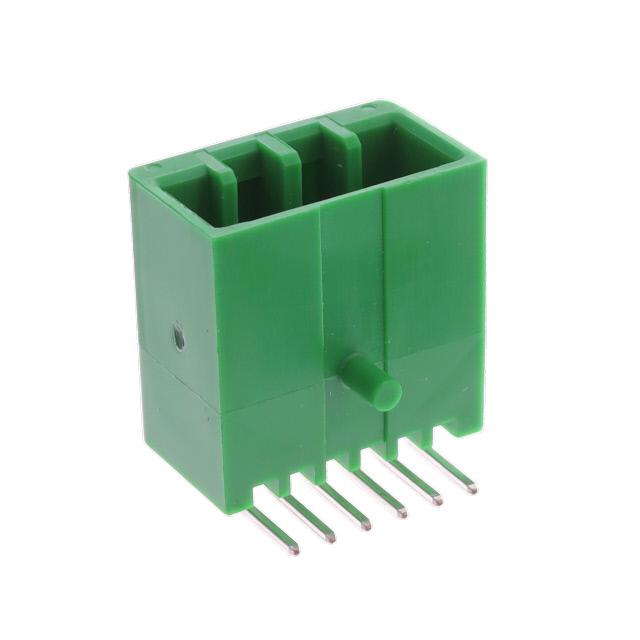

JAE Electronics IL-AG5-6P-S3L2

IL-AG5-6P-S3L2 JAE Electronics
JAE Electronics

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 85°C
Contact Finish Thickness - Post:
-
Number of Positions:
6
Contact Finish - Post:
Tin
edacadModel:
IL-AG5-6P-S3L2 Models
Overall Contact Length:
-
Insulation Height:
0.433" (11.00mm)
Insulation Color:
Green
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
Automotive
Number of Rows:
1
Material Flammability Rating:
-
edacadModelUrl:
/en/models/2139211
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
-
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.331" (8.40mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
15 Weeks
Current Rating (Amps):
3A per Contact
Contact Length - Post:
0.138" (3.50mm)
Pitch - Mating:
0.098" (2.50mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Through Hole, Right Angle
Series:
IL-AG5
Packaging:
Bulk
Insulation Material:
Polybutylene Terephthalate (PBT)
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
IL-AG5-6
ECCN:
EAR99
Checking for live stock

This is manufactured by JAE Electronics. The manufacturer part number is IL-AG5-6P-S3L2. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 85°c operating temperature range. The product carries possible position value of 6. It has possible tin contact post finishing. 0.433" (11.00mm) of insulation height. In addition, green is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in automotive. It comes in 1 of rows. It has a typical square shape. header Connector type offer robust functionality. It is 0.331" (8.40mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 15 weeks standard lead time. Additionally, the product's output is 3a per contact. 0.138" (3.50mm) is the given possible contact length (post) values. It has 0.098" (2.50mm) of pitch-mating value. The splendid features of the product include board guide. The product is available in through hole, right angle configuration. The product il-ag5, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polybutylene terephthalate (pbt) insulation material. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to il-ag5-6, a base product number of the product. The product is designated with the ear99 code number.
