TE Connectivity AMP Connectors 292173-7

292173-7 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Manufacturer Standard Lead Time:
33 Weeks
Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Detailed Description:

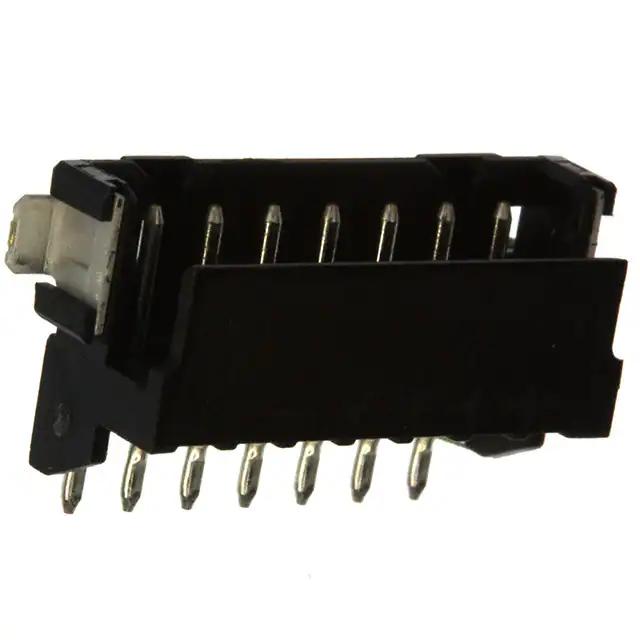

Connector Header Surface Mount, Right Angle 7 position 0.079" (2.00mm)
Number of Positions:
7
Base Part Number:
292173
Insulation Height:
0.228" (5.80mm)
Insulation Color:
Black
Shrouding:
Shrouded - 4 Wall
Applications:
General Purpose
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Manufacturer:
TE Connectivity AMP Connectors
Voltage Rating:
125VAC
Connector Type:
Header
Contact Length - Mating:
0.165" (4.20mm)
Number of Positions Loaded:
All
Fastening Type:
Detent Lock
Termination:
Solder
Current Rating (Amps):
Varies by Wire Gauge
Pitch - Mating:
0.079" (2.00mm)
Features:
Board Guide, Solder Retention
Mounting Type:
Surface Mount, Right Angle
Series:
CT
Packaging:
Cut Tape (CT)
Customer Reference:
Contact Type:
Male Pin
Contact Finish - Post:
Tin
Insulation Material:
Polyamide (PA6T), Nylon 6T, Glass Filled
Contact Material:
Brass
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 292173-7. It has typical 33 weeks of manufacturer standard lead time. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It features connector header surface mount, right angle 7 position 0.079" (2.00mm). The product carries possible position value of 7. Base Part Number: 292173. 0.228" (5.80mm) of insulation height. In addition, black is the insulation color of the product. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in general purpose. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. The te connectivity amp connectors's product offers user-desired applications. Moreover, the product has a nominal 125vac voltage rating. header Connector type offer robust functionality. It is 0.165" (4.20mm) contact mated. However, all is the Number of Positions Loaded. Furthermore, detent lock is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is varies by wire gauge. It has 0.079" (2.00mm) of pitch-mating value. The splendid features of the product include board guide, solder retention. The product is available in surface mount, right angle configuration. The product ct, is a highly preferred choice for users. In addition, cut tape (ct) is the available packaging type of the product. It has typical contact type of male pin. It has possible tin contact post finishing. It has a robust polyamide (pa6t), nylon 6t, glass filled insulation material. The product is made from sturdy brass materials.

pdf icon
Multiple Devices Contact Pin Supplier Change 26/Nov/2019(PCN Assembly/Origin)
pdf icon
y-29217y-y - material chg 28/JAN/2021(PCN Design/Specification)
pdf icon
Multiple Devices Packaging 19/Oct/2017(PCN Packaging)
pdf icon
Multiple Devices Packaging 24/Aug/2017(PCN Packaging)
pdf icon
292173-7.pdf(3D Drawings)
