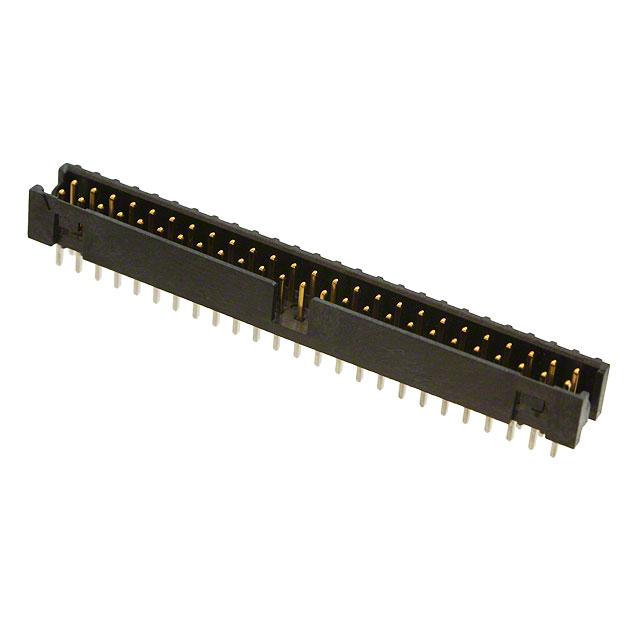

3M 159250-6002
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-55°C ~ 105°C
Contact Finish Thickness - Post:
200.0µin (5.08µm)
Number of Positions:
50
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.210" (5.33mm)
Voltage Rating:
150V
edacadModel:
159250-6002 Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2503854
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Liquid Crystal Polymer (LCP), Glass Filled
Package:
Tray
Row Spacing - Mating:
0.079" (2.00mm)
Connector Type:
Header
Contact Length - Mating:
0.142" (3.61mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
15.0µin (0.38µm)
Fastening Type:
Detent Lock
Termination:
Solder
Current Rating (Amps):
1.25A
Contact Length - Post:
0.112" (2.84mm)
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
Keying Slot
Mounting Type:
Through Hole
Series:
159
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
159250
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 159250-6002 on website for other similar products.
We accept all major payment methods for all products including ET12010263. Please check your shopping cart at the time of order.
You can order 3M brand products with 159250-6002 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of 3M 159250-6002. You can also check on our website or by contacting our customer support team for further order details on 3M 159250-6002.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12010263 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "3M" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12010263.
Yes. We ship 159250-6002 Internationally to many countries around the world.
This is manufactured by 3M. The manufacturer part number is 159250-6002. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -55°c ~ 105°c operating temperature range. Additionally, it features 200.0µin (5.08µm) of post thickness. The product carries possible position value of 50. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.210" (5.33mm) of insulation height. Moreover, the product has a nominal 150v voltage rating. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust liquid crystal polymer (lcp), glass filled insulation material. It is shipped in tray package . It carries 0.079" (2.00mm) of row spacing. header Connector type offer robust functionality. It is 0.142" (3.61mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 15.0µin (0.38µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, detent lock is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 1.25a. 0.112" (2.84mm) is the given possible contact length (post) values. It has 0.079" (2.00mm) of pitch-mating value. The splendid features of the product include keying slot. The product is available in through hole configuration. The product 159, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 159250, a base product number of the product. The product is designated with the ear99 code number.
