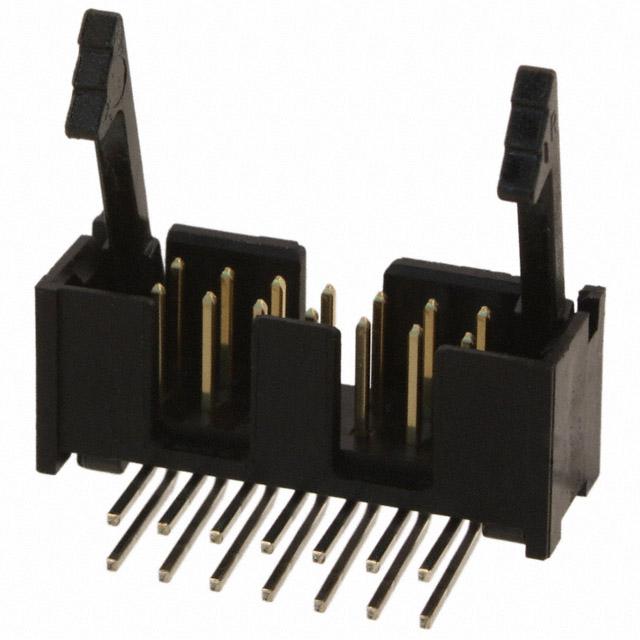

TE Connectivity AMP Connectors 104130-2
Product Information
Contact Finish - Mating:
Gold or Gold-Palladium
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
RoHS non-compliant
Operating Temperature:
-65°C ~ 105°C
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
14
Contact Finish - Post:
Tin-Lead
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.360" (9.14mm)
Voltage Rating:
250VAC
REACH Status:
Vendor Undefined
edacadModel:
104130-2 Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
-
edacadModelUrl:
/en/models/298820
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA), Nylon, Glass Filled
Package:
Tray
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.200" (5.08mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Latch Lock/Eject Hooks
Termination:
Solder
standardLeadTime:
16 Weeks
Current Rating (Amps):
1A per Contact
Contact Length - Post:
0.135" (3.43mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Keying Slot
Mounting Type:
Through Hole, Right Angle
Series:
AMP-Latch
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
104130
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 104130-2 on website for other similar products.
We accept all major payment methods for all products including ET11940464. Please check your shopping cart at the time of order.
You can order TE Connectivity AMP Connectors brand products with 104130-2 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of TE Connectivity AMP Connectors 104130-2. You can also check on our website or by contacting our customer support team for further order details on TE Connectivity AMP Connectors 104130-2.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11940464 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TE Connectivity AMP Connectors" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11940464.
Yes. We ship 104130-2 Internationally to many countries around the world.
This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 104130-2. It has nice contact finishing of gold or gold-palladium. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs non-compliant. The product has -65°c ~ 105°c operating temperature range. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 14. It has possible tin-lead contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.360" (9.14mm) of insulation height. Moreover, the product has a nominal 250vac voltage rating. In addition, it is vendor undefined. It comes in 2 of rows. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust polyamide (pa), nylon, glass filled insulation material. It is shipped in tray package . It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. It is 0.200" (5.08mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch lock/eject hooks is the Fastening Type of the product. The product features solder termination style. It has a long 16 weeks standard lead time. Additionally, the product's output is 1a per contact. 0.135" (3.43mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include keying slot. The product is available in through hole, right angle configuration. The product amp-latch, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 104130, a base product number of the product. The product is designated with the ear99 code number.
