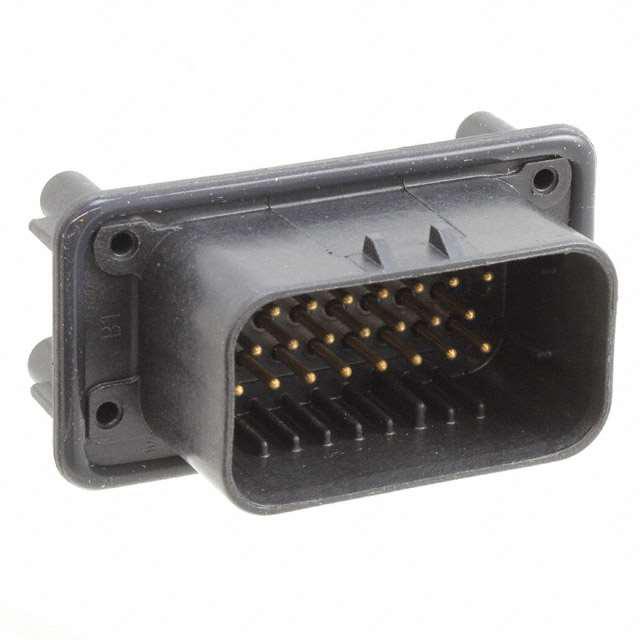

TE Connectivity AMP Connectors 1-776228-1
Product Information
Contact Finish - Mating:
Gold-Palladium
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-40°C ~ 125°C
Contact Finish Thickness - Post:
-
Number of Positions:
23
Contact Finish - Post:
-
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
-
Voltage Rating:
250VAC
REACH Status:
REACH Affected
edacadModel:
1-776228-1 Models
Applications:
Automotive, Industrial
Number of Rows:
3
Material Flammability Rating:
-
edacadModelUrl:
/en/models/1893350
Insulation Color:
Black
Contact Shape:
Circular
Mated Stacking Heights:
-
Insulation Material:
Polybutylene Terephthalate (PBT), Glass Filled
Package:
Bulk
Row Spacing - Mating:
0.157" (4.00mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Locking Ramp
Termination:
Solder
Current Rating (Amps):
Varies by Wire Gauge
Contact Length - Post:
-
Pitch - Mating:
0.157" (4.00mm)
Ingress Protection:
-
Features:
Mounting Flange, Sealed
Mounting Type:
Panel Mount, Through Hole
Series:
AMPSEAL
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
776228
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 1-776228-1 on website for other similar products.
We accept all major payment methods for all products including ET11808973. Please check your shopping cart at the time of order.
You can order TE Connectivity AMP Connectors brand products with 1-776228-1 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of TE Connectivity AMP Connectors 1-776228-1. You can also check on our website or by contacting our customer support team for further order details on TE Connectivity AMP Connectors 1-776228-1.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11808973 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TE Connectivity AMP Connectors" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11808973.
Yes. We ship 1-776228-1 Internationally to many countries around the world.
This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 1-776228-1. It has nice contact finishing of gold-palladium. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -40°c ~ 125°c operating temperature range. The product carries possible position value of 23. Furthermore, a bespoke product features shrouded - 4 wall. Moreover, the product has a nominal 250vac voltage rating. In addition, it is reach affected. The product is widely employed in automotive, industrial. It comes in 3 of rows. In addition, black is the insulation color of the product. It has a typical circular shape. It has a robust polybutylene terephthalate (pbt), glass filled insulation material. It is shipped in bulk package . It carries 0.157" (4.00mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is varies by wire gauge. It has 0.157" (4.00mm) of pitch-mating value. The splendid features of the product include mounting flange, sealed. The product is available in panel mount, through hole configuration. The product ampseal, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 776228, a base product number of the product. The product is designated with the ear99 code number.
