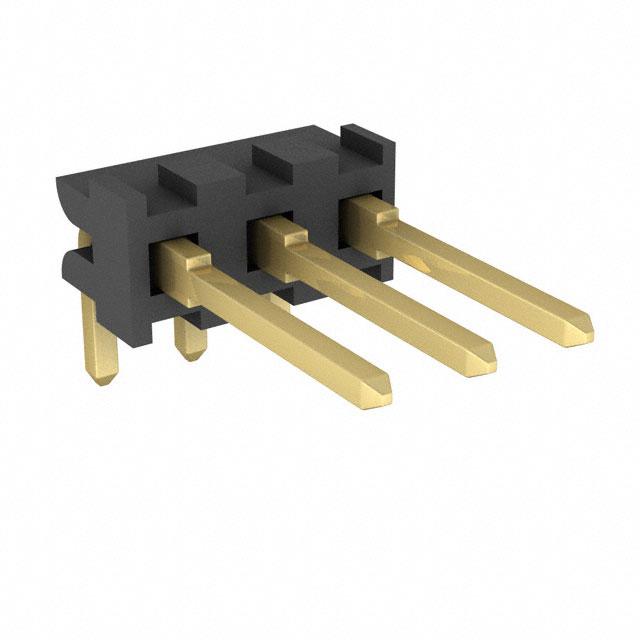

TE Connectivity AMP Connectors 87233-3

87233-3 TE Connectivity AMP Connectors
87233-3
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-65°C ~ 105°C
Contact Finish Thickness - Post:
Flash
Number of Positions:
3
Contact Finish - Post:
Gold
edacadModel:
87233-3 Models
Overall Contact Length:
-
title:
87233-3
Insulation Height:
0.138" (3.50mm)
Insulation Color:
Black
REACH Status:
REACH Affected
Shrouding:
Unshrouded
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/295330
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
-
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.318" (8.08mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
15.0µin (0.38µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
34 Weeks
Current Rating (Amps):
3A
Contact Length - Post:
0.110" (2.79mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
AMPMODU Mod II
Packaging:
Bulk
Insulation Material:
Thermoplastic
Contact Type:
Male Pin
Contact Material:
Phosphor Bronze
Base Product Number:
87233
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 87233-3. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -65°c ~ 105°c operating temperature range. Additionally, it features flash of post thickness. The product carries possible position value of 3. It has possible gold contact post finishing. 0.138" (3.50mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach affected. Furthermore, a bespoke product features unshrouded. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. header Connector type offer robust functionality. It is 0.318" (8.08mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 15.0µin (0.38µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 34 weeks standard lead time. Additionally, the product's output is 3a. 0.110" (2.79mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole, right angle configuration. The product ampmodu mod ii, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust thermoplastic insulation material. It has typical contact type of male pin. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to 87233, a base product number of the product. The product is designated with the ear99 code number.
