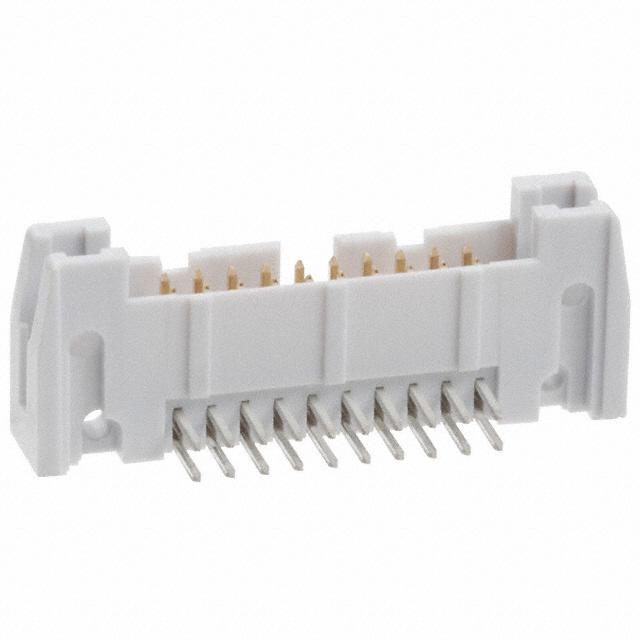

Assmann WSW Components AWH20A-0202-T-R
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
-
Number of Positions:
20
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.669" (17.00mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
AWH20A-0202-T-R Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/924563
Insulation Color:
Gray
Contact Shape:
Square
Mated Stacking Heights:
-
Package:
Tray
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
Flash
Fastening Type:
Push-Pull
Termination:
Solder
Current Rating (Amps):
3A
Contact Length - Post:
0.150" (3.81mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Keying Slot
Mounting Type:
Through Hole, Right Angle
Series:
-
Insulation Material:
Polybutylene Terephthalate (PBT), Glass Filled
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
AWH 20A
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search AWH20A-0202-T-R on website for other similar products.
We accept all major payment methods for all products including ET11628660. Please check your shopping cart at the time of order.
You can order Assmann WSW Components brand products with AWH20A-0202-T-R directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Assmann WSW Components AWH20A-0202-T-R. You can also check on our website or by contacting our customer support team for further order details on Assmann WSW Components AWH20A-0202-T-R.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11628660 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Assmann WSW Components" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11628660.
Yes. We ship AWH20A-0202-T-R Internationally to many countries around the world.
This is manufactured by Assmann WSW Components. The manufacturer part number is AWH20A-0202-T-R. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product has -40°c ~ 105°c operating temperature range. The product carries possible position value of 20. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.669" (17.00mm) of insulation height. In addition, it is reach unaffected. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, gray is the insulation color of the product. It has a typical square shape. It is shipped in tray package . It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, flash is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 3a. 0.150" (3.81mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include keying slot. The product is available in through hole, right angle configuration. It has a robust polybutylene terephthalate (pbt), glass filled insulation material. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to awh 20a, a base product number of the product. The product is designated with the ear99 code number.
